CONDENSER REMOVAL/INSTALLATION

id092000705000

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front map light(See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(2)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(8)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(9)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Remove the bolts.

a30zzw00000392

4.  Partially peel back the cabin side weatherstrip.

a30zzw00000393

5.  Move the headliner in the direction of the arrow shown in the figure and remove the surface fastener from the sunroof unit. (With sunroof system)

a30zzw00000394

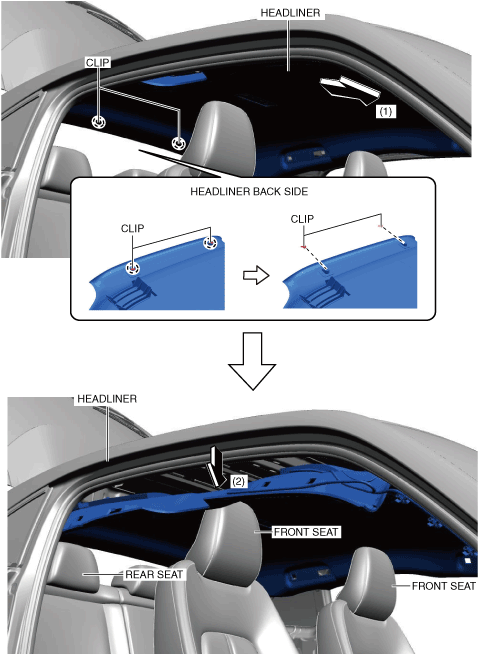

6.  Slide the headliner in the direction of arrow (1) shown in the figure and remove the clips from the headliner.

a30zzw00000395

7.  Move the headliner in the direction of arrow (2) shown in the figure and place it on the front and rear seats.

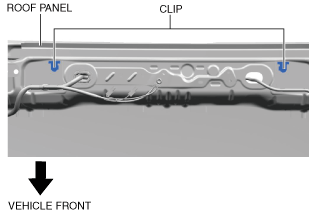

8.  Remove the clips from the roof panel.

a30zzw00000396

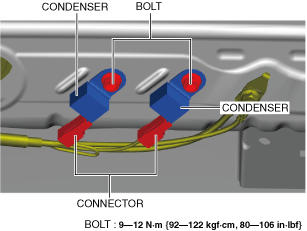

9.  Disconnect the connectors.

a30zzw00007160

10.  Remove the bolts.

11.  Remove the condenser.

12.  Install in the reverse order of removal. (See Headliner Installation Note.)

Headliner Installation Note

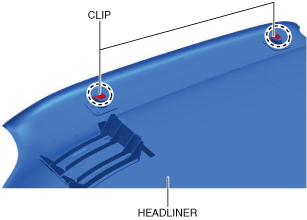

1.  Before installing the headliner, attach the clip to it.

a30zzw00000398
