SMART BRAKE SUPPORT (SBS) [FORWARD DETECTION] LOCATION INDEX

id152000100300

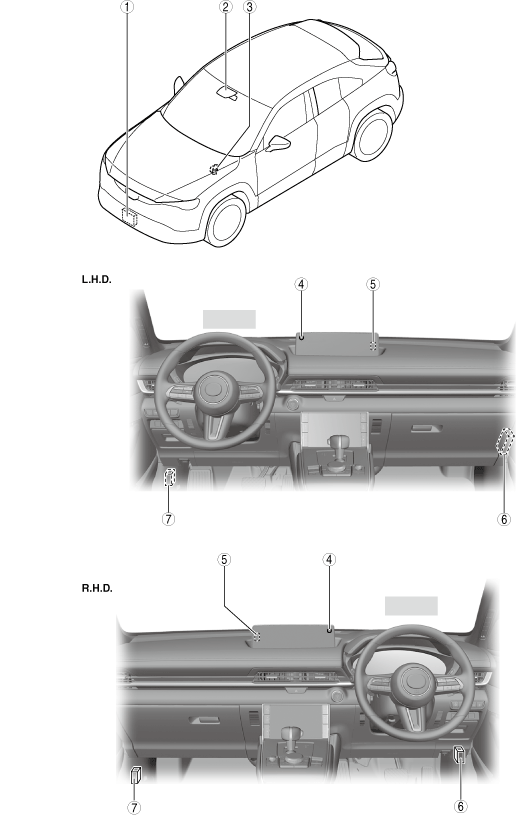

a30zzw00002680

1	Front radar sensor (See FRONT RADAR SENSOR REMOVAL/INSTALLATION.) (See FRONT RADAR SENSOR INSPECTION.) (See FRONT RADAR SENSOR AIMING.) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)
2	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) INSPECTION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD.)
3	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
4	Driver monitoring camera (See DRIVER MONITORING CAMERA REMOVAL/INSTALLATION.)
5	Driver monitoring camera LED (See DRIVER MONITORING CAMERA LED REMOVAL/INSTALLATION.)
6	Driver monitoring camera unit (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(E)].) (See DRIVER MONITORING CAMERA UNIT INSPECTION.)
7	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION [(E)].) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
