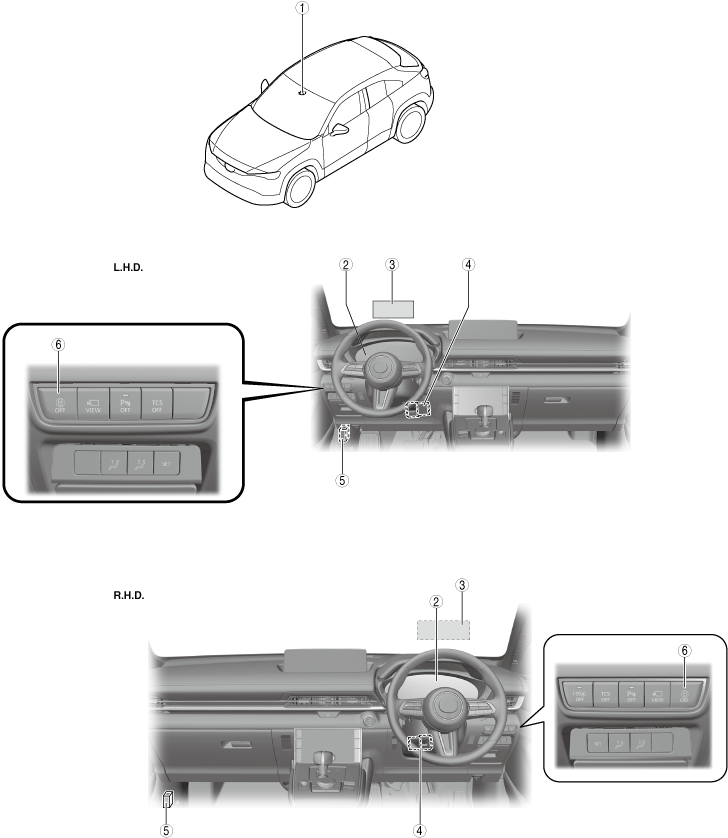

LANE-KEEP ASSIST SYSTEM LOCATION INDEX

id152000101300

a30zzw00002687

1	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) INSPECTION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD.)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
3	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(E)].) (See ACTIVE DRIVING DISPLAY INSPECTION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.)
4	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.) (See EPS CONTROL MODULE INSPECTION.)
5	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION [(E)].) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
6	i-ACTIVSENSE OFF switch (See i-ACTIVSENSE OFF SWITCH REMOVAL/INSTALLATION.) (See i-ACTIVSENSE OFF SWITCH INSPECTION.)
