DTC P0D2C:00 [PCM (e-SKYACTIV)]

id300202033400

Outline

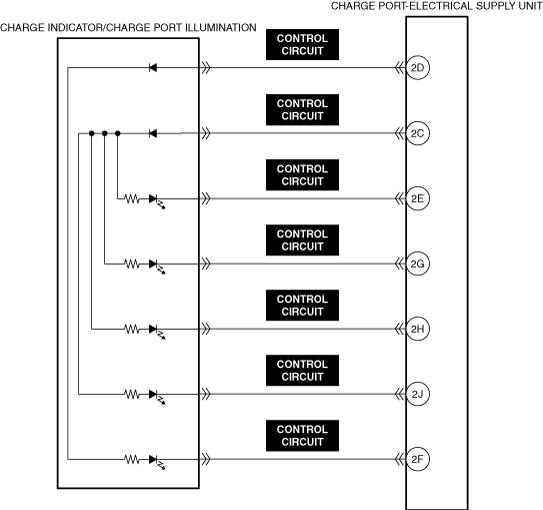

System malfunction location	Charge indicator/charge port illumination system: Circuit malfunction
Detection condition	•  The PCM detects a charge indicator malfunction or charge port illumination circuit malfunction.
Fail-safe	•  Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [PCM (e-SKYACTIV)].)
Possible cause	•  Charge port-electrical supply unit connector or terminals malfunction •  Charge indicator and charge port illumination system malfunction ―  Circuit malfunction ―  Connector malfunction ―  Charge indicator/charge port illumination unit malfunction •  Charge port-electrical supply unit malfunction •  PCM malfunction

Diagnostic Procedure

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION •  Record the snapshot data. Note •  Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	INSPECT CHARGE PORT-ELECTRICAL SUPPLY UNIT CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector andterminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
3	INSPECT CHARGE INDICATOR/CHARGE PORT ILLUMINATION FOR MALFUNCTION •  Inspect the applicable part. (See CHARGE INDICATOR INSPECTION.) (See CHARGE PORT ILLUMINATION INSPECTION.) •  Is the part normal?	Yes	Replace the charge port-electrical supply unit, perform the repair completion verification 1. (See CHARGE PORT-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION.)
		No	Replace the charge lid box assembly, perform the repair completion verification 1. (See CHARGE LID BOX ASSEMBLY REMOVAL/INSTALLATION.)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Replicate the vehicle conditions at the time the DTC was detected using the following procedure. Warning •  While performing this step, always operate the vehicle in a safe and lawful manner. •  When the M-MDS is used to observe monitor system status while driving, be sure to have another technician with you, or record the data in the M-MDS using the PID/DATA MONITOR AND RECORD capturing function and inspect later. ―  Drive the vehicle under the snapshot data condition. •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION.)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
