AIR MIX ACTUATOR REMOVAL

id074000705600

Warning

•  Service the area around the heater core pipe when the engine is cold. If the heater core pipe is touched when the engine is hot, it may cause severe burns.

Driver-side

1.  Set the temperature control to MAX COLD.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the connector.

a30zzw00006175

4.  Remove the screws.

5.  Detach the clip.

6.  Remove the air mix actuator component.

7.  Remove the driver-side air mix main link.

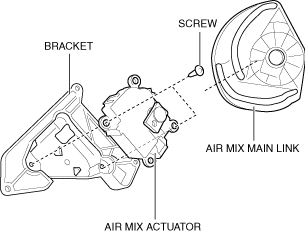

a30zzw00006176

8.  Remove the screws.

9.  Remove the air mix actuator.

Passenger-side

1.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Set the temperature control to MAX COLD.

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(15)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(16)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL.)

(17)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(19)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(20)  Passenger-side front heat duct No.1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

5.  Disconnect the connector.

a30zzw00006177

6.  Remove the screws.

7.  Remove the air mix actuator component.

8.  Remove the driver-side air mix main link.

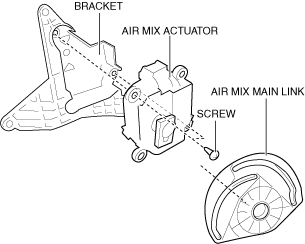

a30zzw00006178

9.  Remove the screws.

10.  Remove the air mix actuator.
