INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200700800

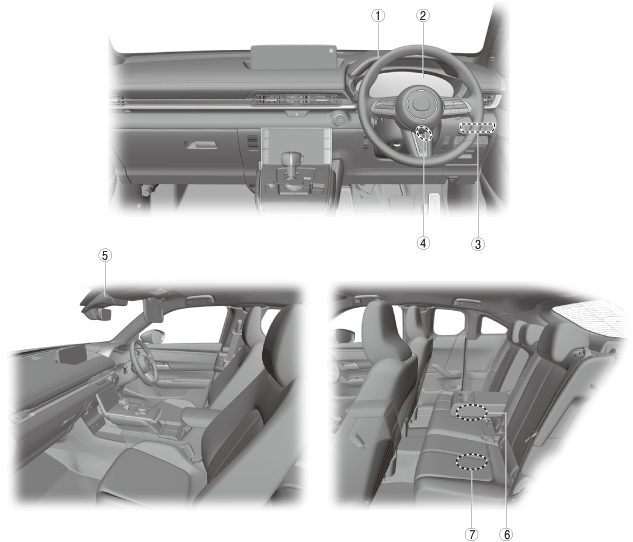

Interior

a30zzw00005674

1	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
3	Parking sensor OFF switch (See PARKING SENSOR OFF SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR OFF SWITCH INSPECTION.)
4	Front notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.) (See NOTIFICATION AND WARNING SPEAKER INSPECTION.)
5	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)
6	Fuel gauge sender unit (sub) (AWD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.) (See FUEL GAUGE SENDER UNIT INSPECTION.)
7	Fuel gauge sender unit (main) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.) (See FUEL GAUGE SENDER UNIT INSPECTION.)

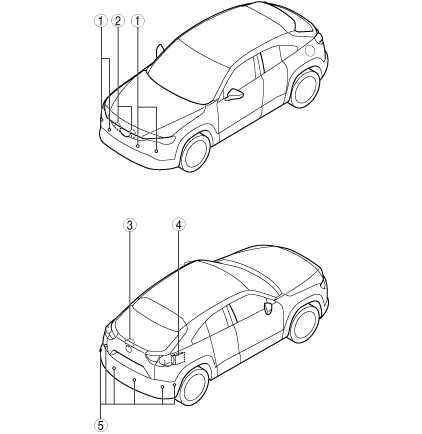

Exterior

a30jjw00003210

1	Front ultrasonic sensor (With front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR INSPECTION.) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
2	Horn (See HORN REMOVAL/INSTALLATION.) (See HORN INSPECTION.)
3	Rear Notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.) (See NOTIFICATION AND WARNING SPEAKER INSPECTION.)
4	Parking assist unit (Ultrasonic) (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT (ULTRASONIC) INSPECTION.)
5	Rear ultrasonic sensor (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR INSPECTION.) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
