BELTLINE MOLDING REMOVAL/INSTALLATION

1. Remove the following parts:

(1) Console (See CONSOLE REMOVAL/INSTALLATION.)

(2) Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(3) Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5) Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

(6) Seat back bar garnish (front) (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(7) Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

(8) Seat belt set plate (See SEAT BELT REMOVAL/INSTALLATION.)

(9) Seat back crossmember assembly (See SEAT BACK CROSSMEMBER ASSEMBLY REMOVAL/INSTALLATION.)

(10) Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION.)

(11) Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

(12) Side shelf (See SIDE SHELF REMOVAL/INSTALLATION.)

(13) Seat belt upper anchor installation bolt (See SEAT BELT REMOVAL/INSTALLATION.)

(14) Convertible top (See CONVERTIBLE TOP REMOVAL/INSTALLATION.)

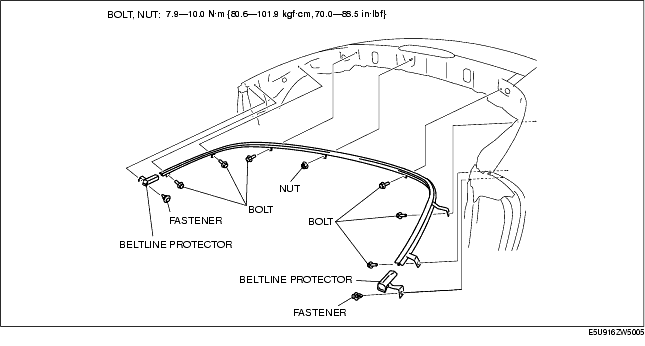

2. Remove the fasteners.

3. Remove the beltline protector.

4. Remove the nut and bolts.

5. Remove the beltline molding.

6. Install in the reverse order of removal.
