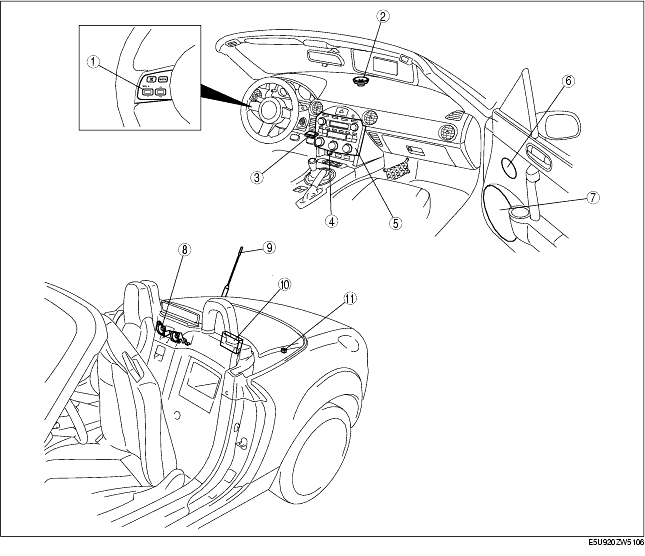

1
|
Audio control switch
|
|
2
|
Center speaker (Vehicles with Bose)
(See CENTER SPEAKER INSPECTION.)
|
|
3
|
AUDIOPILOT microphone (Vehicles with Bose)
|
|
4
|
Accessory socket
(See ACCESSORY SOCKET INSPECTION.)
|
|
5
|
Center panel unit
|
|
6
|
Tweeter (Vehicles without Bose) / Door upper speaker (Vehicles with Bose)
(See TWEETER INSPECTION.)
|
|
7
|
Door speaker
(See DOOR SPEAKER INSPECTION.)
|
|
8
|
Rear speaker
(See REAR SPEAKER INSPECTION.)
|
|
9
|
Manual antenna
(See MANUAL ANTENNA INSPECTION.)
|
|
10
|
Audio amplifier (Vehicles with Bose)
|
|
11
|
Condenser
|
