CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0140g8804100

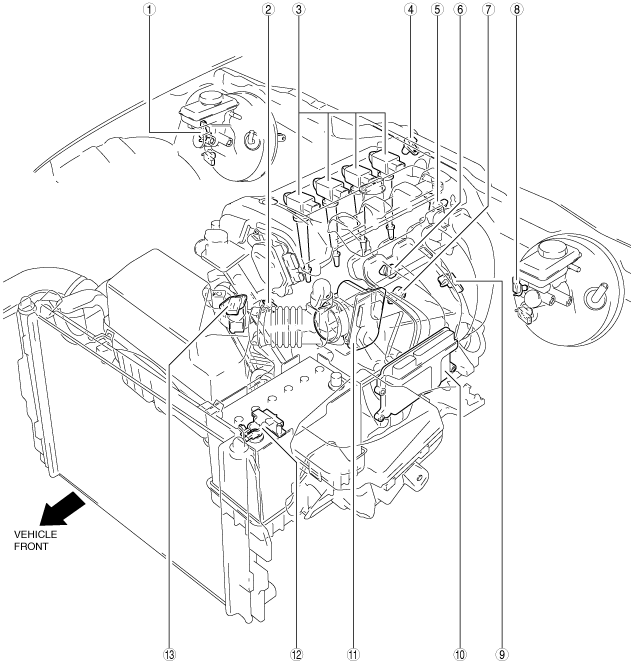

amxzzw00002952

1	Vacuum sensor 2 (R.H.D.) (See VACUUM SENSOR 2 INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	Ion sensor (See ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See ION SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
4	Exhaust CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
5	Intake CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
6	Fuel pressure sensor (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
7	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See KNOCK SENSOR (KS) INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
8	Vacuum sensor 2 (L.H.D.) (See VACUUM SENSOR 2 INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
9	MAP sensor/IAT sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
10	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
11	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
12	Current sensor (with i-stop system) (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See CURRENT SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
13	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

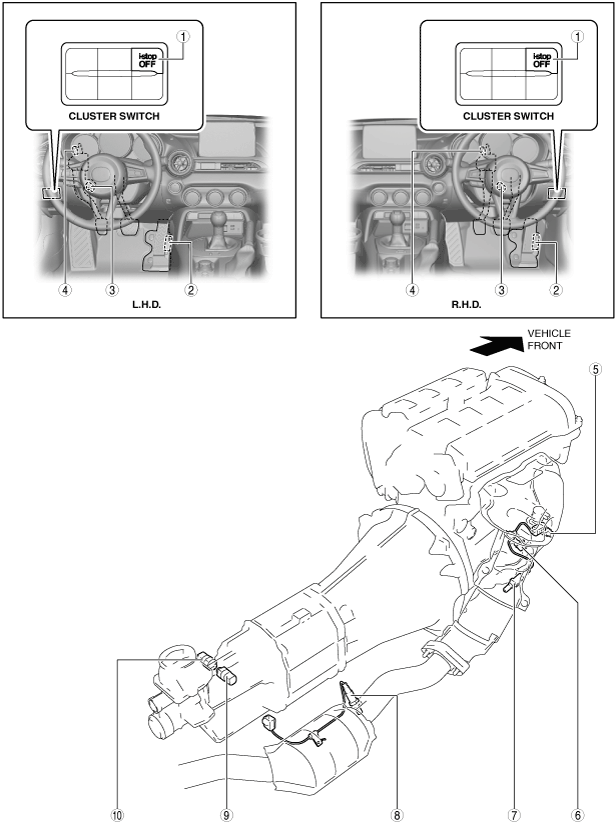

amxzzw00002953

1	i-stop OFF switch (with i-stop system) (See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See i-stop OFF SWITCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	CPP switch (MT) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
4	Clutch stroke sensor (with i-stop system (MT)) (See CLUTCH STROKE SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
5	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
6	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
7	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
8	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
9	Neutral switch No.2 (with i-stop system (MT)) (See NEUTRAL SWITCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
10	Neutral switch No.1 (MT) (See NEUTRAL SWITCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
