LIGHTING SYSTEMS LOCATION INDEX

id091800800100

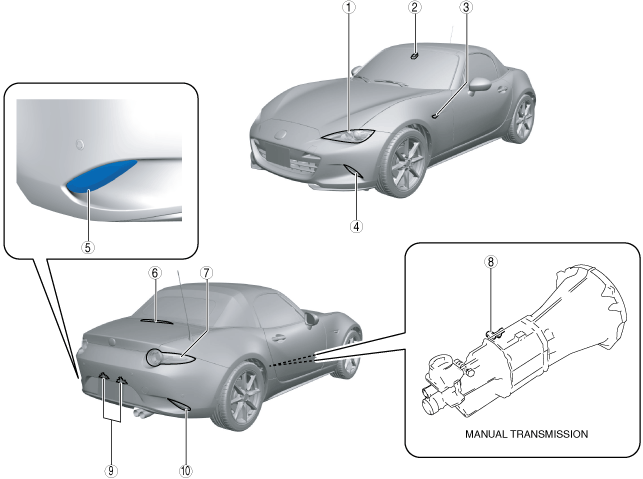

Exterior

amxzzw00005475

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
2	Auto light sensor (with auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.)
3	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)
4	Running light (with running light) (See RUNNING LIGHT REMOVAL/INSTALLATION.) (See RUNNING LIGHT INSPECTION [LED TYPE].) (See RUNNING LIGHT BULB REMOVAL/INSTALLATION.)
5	Back-up light (without rear fog light or R.H.D.)/ Rear fog light (with rear fog light and L.H.D.) (See BACK-UP LIGHT REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
6	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
7	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See BRAKE LIGHT/TAILLIGHT BULB REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT SHORT-CORD INSPECTION.)
8	Back-up light switch (See BACK-UP LIGHT SWITCH INSPECTION.)
9	License plate lights (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT SHORT-CORD INSPECTION.)
10	Back-up light (without rear fog light or L.H.D.)/ Rear fog light (with rear fog light and R.H.D.) (See BACK-UP LIGHT REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)

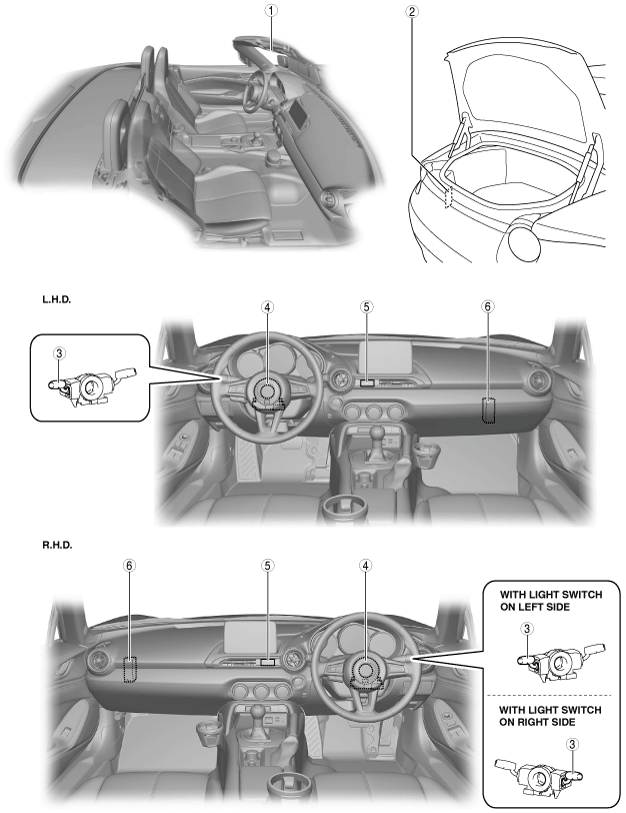

Interior

amxzzw00003186

1	Map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.) (See MAP LIGHT INSPECTION.)
2	Trunk compartment light (See TRUNK COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See TRUNK COMPARTMENT LIGHT INSPECTION.)
3	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
4	Steering angle sensor (with adaptive front lighting system (AFS) or adaptive LED headlights) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
5	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
6	Auto leveling control module (without adaptive front lighting system (AFS) and adaptive LED headlights)) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
