INTERIOR TRIM LOCATION INDEX

id091700454200

L.H.D.

adejjw00002912

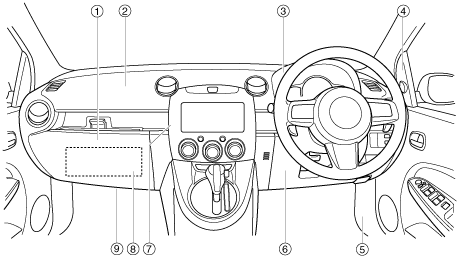

R.H.D.

am2zzw00002218

1	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
2	Dashboard (See DASHBOARD REMOVAL/INSTALLATION.) (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
3	Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
4	Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
5	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
6	Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
7	Center panel (vehicles without audio unit) (See CENTER PANEL REMOVAL/INSTALLATION.)
8	Glove compartment cover (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)
9	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

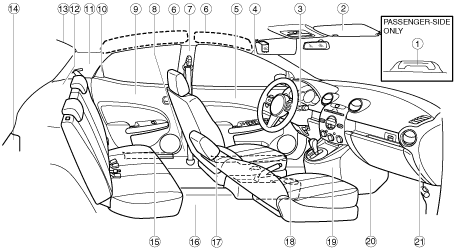

L.H.D.

am2zzw00002219

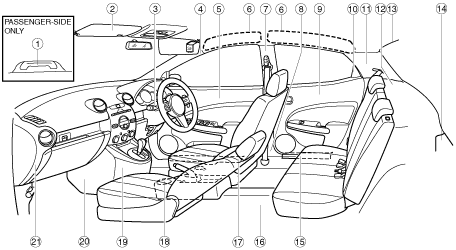

R.H.D.

am2zzw00002220

1	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
2	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
3	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
4	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
5	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
6	Shock absorbing pad (See SHOCK ABSORBING PAD REMOVAL/INSTALLATION.)
7	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
8	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
9	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
10	Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)
11	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
12	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
13	Headliner (See HEADLINER REMOVAL/INSTALLATION.)
14	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
15	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
16	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
17	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
18	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
19	Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.) (See FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY.)
20	Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
21	Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

adejjw00003361

1	Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
2	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
3	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
