ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION
id092000812200
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (2) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (3) Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (5) Glove compartment cover (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)
- (6) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (7) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (8) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (9) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (10) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (11) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
- (12) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (13) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
- (14) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
- (15) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
- (16) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
- (17) Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
- (18) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
- (19) Shift lever (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (20) Selector lever (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (21) Interlock unit (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (22) Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
- (23) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (24) Windshield wiper blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
- (25) Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)
- (26) Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (27) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (28) Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

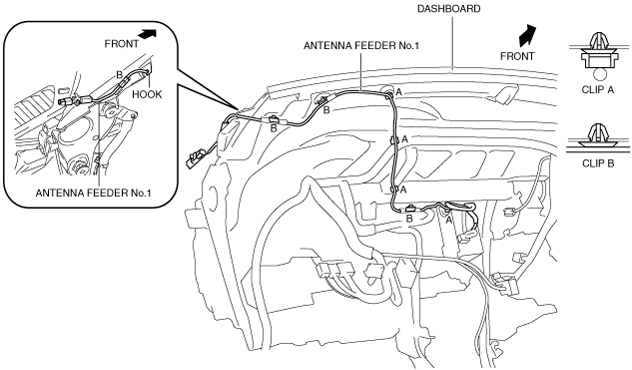

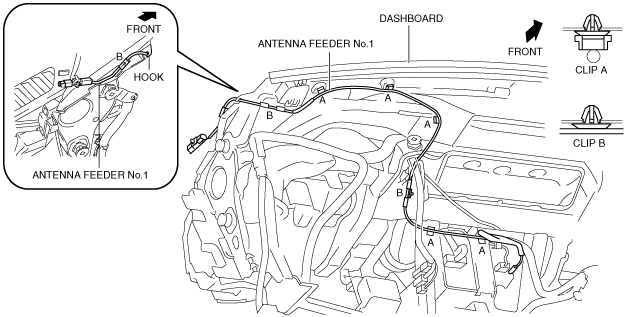

3. Remove clips A and B.
4. Remove the antenna feeder No.1 from the dashboard hooks.
5. Remove antenna feeder No.1.
6. Install in the reverse order of removal.
L.H.D.
R.H.D.
