HAZARD WARNING SWITCH INSPECTION
id091800470000
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION)
- (2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION)
- (3) Rear console (L.H.D.) (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (4) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R])
- (5) Side wall (See SIDE WALL REMOVAL/INSTALLATION)
- (6) Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (7) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION)
- (8) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (9) Glove compartment (Vehicles with center panel unit) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (10) Center panel unit (Vehicles with center panel unit) (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
- (11) Center panel (Vehicles without center panel unit) (See CENTER PANEL REMOVAL/INSTALLATION.)
- (12) Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

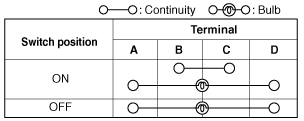

3. Verify that the continuity between the hazard warning switch terminals is as indicated in the table.
-
• If not as indicated in the table, replace the hazard warning switch.
