FRONT DOOR HINGE REMOVAL/INSTALLATION

id091100520500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Upper face (See UPPER FACE REMOVAL/INSTALLATION [(E)].)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front door (See FRONT DOOR REMOVAL/INSTALLATION.)

(5)  Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)

(6)  Side step molding (See SIDE STEP MOLDING REMOVAL.) (See SIDE STEP MOLDING INSTALLATION.)

(7)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(8)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

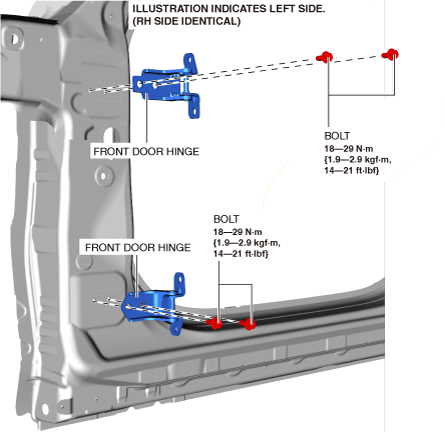

3.  Remove the bolts shown in the figure.

am3zzw00029694

4.  Remove the front door hinges.

5.  Install in the reverse order of removal.

6.  Adjust the front door. (See DOOR ADJUSTMENT.)

7.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.  Adjust the headlight aiming. (See HEADLIGHT AIMING [(E)].)
