LIGHTING SYSTEMS LOCATION INDEX [(E)]

id0918008001x2

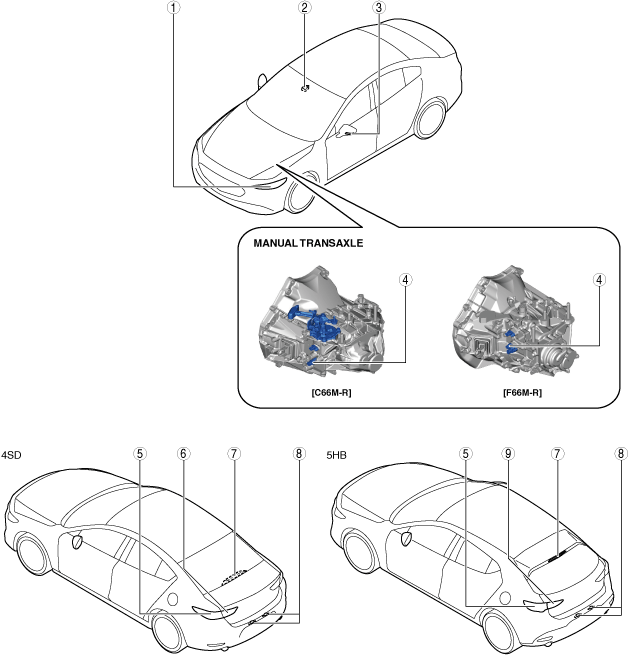

Exterior

am3zzw00028504

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT INSPECTION.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING [(E)].) (See RUNNING LIGHT BULB REMOVAL/INSTALLATION [(E)].) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
2	Auto light sensor (with auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.) (See AUTO LIGHT SENSOR INSPECTION.)
3	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.)
4	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION.)
5	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT INSPECTION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION.) (See TAILLIGHT BULB REMOVAL/INSTALLATION.)
6	Trunk lid light (4SD) (See TAILLIGHT BULB REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See TRUNK LID LIGHT REMOVAL/INSTALLATION.) (See TRUNK LID LIGHT INSPECTION [(E)].) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION [(E)].)
7	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.) (See HIGH-MOUNT BRAKE LIGHT INSPECTION.)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT INSPECTION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION.)
9	Liftgate light (5HB) (See TAILLIGHT BULB REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See LIFTGATE LIGHT REMOVAL/INSTALLATION.) (See LIFTGATE LIGHT INSPECTION [(E)].) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION [(E)].)

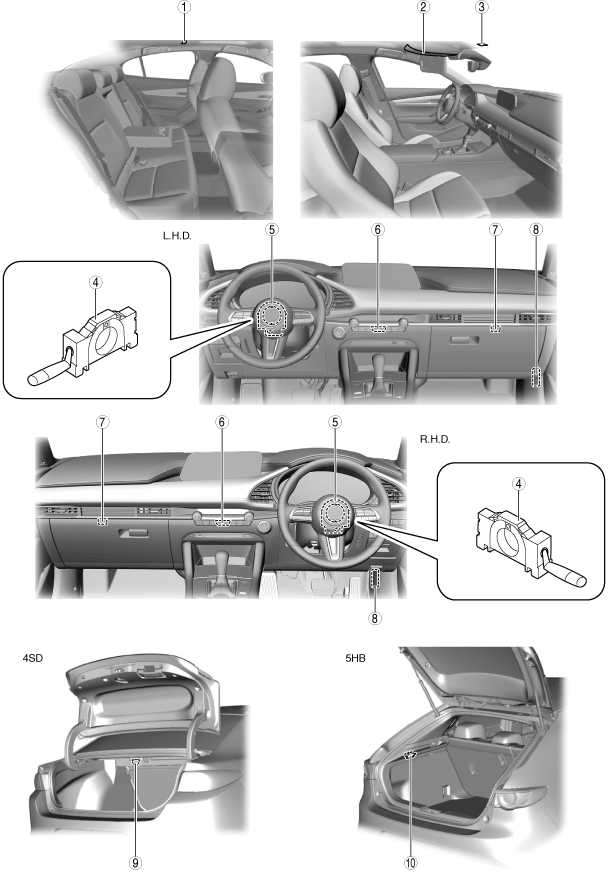

Interior

am3zzw00030984

1	Rear map light (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.) (See REAR MAP LIGHT REMOVAL/INSTALLATION.) (See REAR MAP LIGHT INSPECTION [(E)].)
2	Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT INSPECTION.)
3	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
4	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].) (See LIGHT SWITCH INSPECTION [(E)].)
5	Steering angle sensor (with adaptive front lighting system (AFS) or smart city brake support (SCBS)) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
6	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
7	Glove compartment light (with glove compartment light) (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION [(E)].)
8	Auto leveling control module (without adaptive LED headlights / adaptive front lighting system (AFS)) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION [(E)].) (See AUTO LEVELING CONTROL MODULE INSPECTION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION [(E)].)
9	Trunk compartment light (4SD) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
10	Cargo compartment light (5HB) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
