HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]

id0740a2803600

L.H.D.

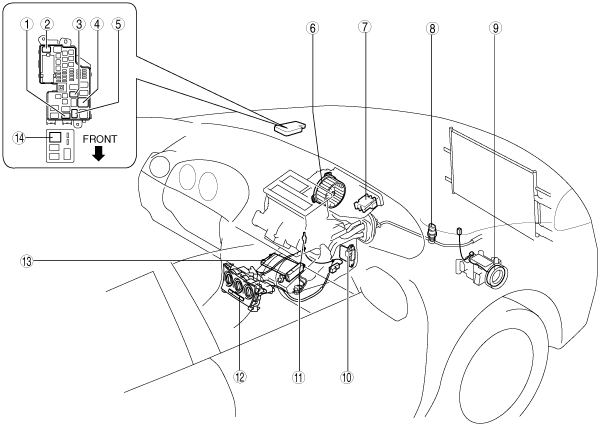

am3zzw00007368

1	Rear window defroster relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Heated windshield relay No.1 (Vehicles with heated windshield) (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Heated windshield relay No.2 (Vehicles with heated windshield) (MZ-CD 1.6 (Y6)) (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
5	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
6	Blower motor (See BLOWER MOTOR REMOVAL [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSTALLATION [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)
7	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)
8	Refrigerant pressure sensor (L5, LF, MZ-CD 1.6 (Y6) (EURO5 emission level)) (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].) Refrigerant pressure switch (except L5, LF, MZ-CD 1.6 (Y6) (EURO5 emission level)) (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
9	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
10	Resistor (See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
11	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
12	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].) (See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
13	PTC heater (MZ-CD 1.6 (Y6)) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [MANUAL AIR CONDITIONER].)
14	Heated windshield relay No.2 (Vehicles with heated windshield) (Z6) (See RELAY LOCATION.) (See RELAY INSPECTION.)

R.H.D.

am3zzw00006744

1	Rear window defroster relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Heated windshield relay No.1 (Vehicles with heated windshield) (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Heated windshield relay No.2 (Vehicles with heated windshield) (MZ-CD 1.6 (Y6), MZR-CD 2.2) (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
5	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
6	Blower motor (See BLOWER MOTOR REMOVAL [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSTALLATION [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)
7	Refrigerant pressure sensor (L5, LF, MZ-CD 1.6 (Y6) (EURO5 emission level)) (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].) Refrigerant pressure switch (except L5, LF, MZ-CD 1.6 (Y6) (EURO5 emission level)) (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
8	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
9	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
10	Resistor (See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
11	PTC heater (MZ-CD 1.6 (Y6), MZR-CD 2.2) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [MANUAL AIR CONDITIONER].)
12	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].) (See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
13	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)
14	Heated windshield relay No.2 (Vehicles with heated windshield) (L5, LF, Z6) (See RELAY LOCATION.) (See RELAY INSPECTION.)
