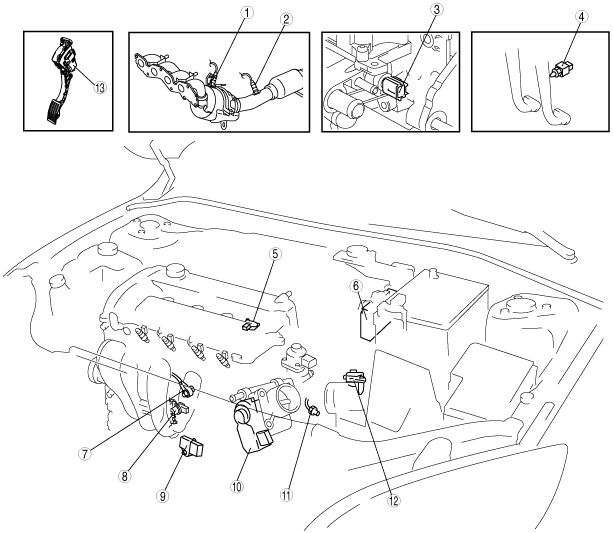

CONTROL SYSTEM LOCATION INDEX [LF, L3]

id0140a9804100

b3e0140w029

1	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) INSPECTION [LF, L3].) (See AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [LF, L3].)
2	HO2S (See AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) INSPECTION [LF, L3].) (See AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [LF, L3].)
3	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [LF, L3].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [LF, L3].)
4	CPP switch (MTX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [LF, L3].)
5	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [LF, L3].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [LF, L3].)
6	PCM (See PCM REMOVAL/INSTALLATION [LF, L3].) (See PCM INSPECTION [LF, L3].) (See PCM CONFIGURATION [LF, L3].)
7	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [LF, L3].) (See KNOCK SENSOR (KS) INSPECTION [LF, L3].)
8	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [LF, L3].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [LF, L3].)
9	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [LF, L3].)
10	TP sensor (See THROTTLE POSITION (TP) SENSOR INSPECTION [LF, L3].)
11	Neutral switch (MTX) (See NEUTRAL SWITCH INSPECTION [LF, L3].)
12	MAF/IAT sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION [LF, L3].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [LF, L3].)
13	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [LF, L3].)
