HVAC BASIC SYSTEM LOCATION INDEX[MZ-CD 1.6 (Y6)]

id0711b1801700

L.H.D.

am3zzw00000689

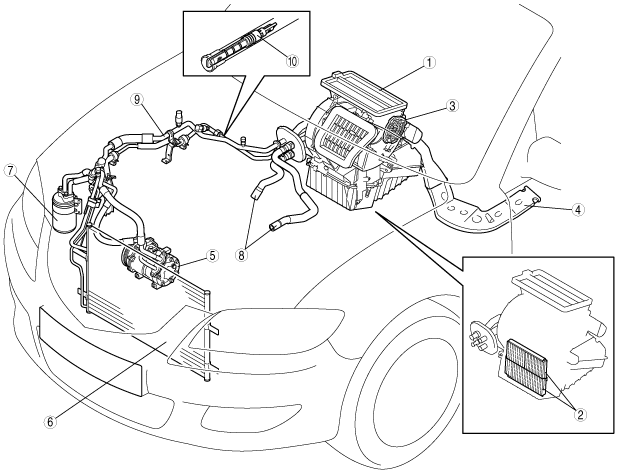

R.H.D.

am3zzw00000690

1	A/C unit (See A/C UNIT REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See A/C UNIT DISASSEMBLY/ASSEMBLY[MANUAL AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
2	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
3	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
4	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
5	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)
6	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
7	Accumulator (See ACCUMULATOR REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)
8	Heater hose
9	Refrigerant line (See REFRIGERANT LINES REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)
10	Orifice (See ORIFICE REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)
