SECURITY AND LOCKS LOCATION INDEX

id091400510000


Locks and Openers

am3zzw00018374

1
Bonnet latch
(See BONNET LATCH REMOVAL/INSTALLATION.)
2
Bonnet release cable
(See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
3
Front outer handle
(See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
4
Front door key cylinder
(See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
(See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)
5
Rear outer handle
(See REAR OUTER HANDLE REMOVAL/INSTALLATION.)
6
Rear door latch and lock actuator
(See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LATCH SWITCH INSPECTION.)
(See REAR DOOR LOCK-LINK SWITCH INSPECTION.)
7
Front door latch and lock actuator
(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See FRONT DOOR LOCK ACTUATOR INSPECTION.)
(See FRONT DOOR LATCH SWITCH INSPECTION.)
(See FRONT DOOR LOCK-LINK SWITCH INSPECTION.)
8
Trunk lid opener switch (exterior)
(See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)
(See TRUNK LID OPENER SWITCH INSPECTION.)
9
Liftgate opener switch
(See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)
(See LIFTGATE OPENER SWITCH INSPECTION.)
10
Liftgate latch and lock actuator
(See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION.)
(See LIFTGATE LOCK ACTUATOR INSPECTION.)
(See LIFTGATE LATCH SWITCH INSPECTION.)
11
Liftgate lock striker
(See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)
12
Door lock striker
(See DOOR LOCK STRIKER REMOVAL/INSTALLATION.)
13
Trunk lid latch and release actuator
(See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.)
(See TRUNK LID LATCH AND RELEASE ACTUATOR INSPECTION.)
(See TRUNK LID RELEASE ACTUATOR INSPECTION.)
(See TRUNK LID LATCH SWITCH INSPECTION.)
14
Trunk lid striker
(See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION.)
15
Door lock switch
(See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)
(See DOOR LOCK SWITCH INSPECTION.)
16
Trunk lid opener switch (interior)
(See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)
(See TRUNK LID OPENER SWITCH INSPECTION.)
17
Fuel-filler lid opener lever
(See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
18
Fuel-filler lid opener cable
(See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION.)
19
Inner handle
(See INNER HANDLE REMOVAL/INSTALLATION.)
20
Bonnet release lever
(See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)


Advanced Keyless Entry System / Push Button Start System / Immobilizer System

am3zzw00018375

1
Keyless beeper
(See KEYLESS BEEPER REMOVAL/INSTALLATION.)
(See KEYLESS BEEPER INSPECTION.)
2
Keyless antenna (exterior, LF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
3
Request switch (LF)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
4
Request switch (RF)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
5
Keyless antenna (exterior, RF)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
6
Keyless antenna (exterior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
7
Request switch (liftgate)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
8
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
9
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION.)
(See PUSH BUTTON START INSPECTION.)
10
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION.)
(See LF CONTROL UNIT INSPECTION.)
11
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)
12
Keyless antenna (interior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
13
Keyless antenna (interior, front)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
14
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)

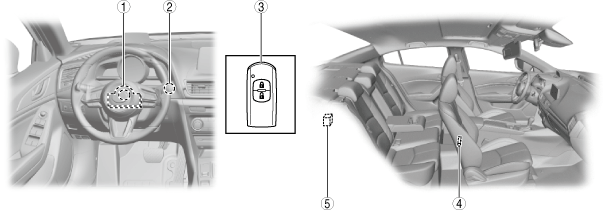

Keyless entry system / Push Button Start System / Immobilizer system

am3zzw00018376

1
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
2
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION.)
(See PUSH BUTTON START INSPECTION.)
3
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
4
Keyless antenna (center)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
5
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)


Theft-deterrent System

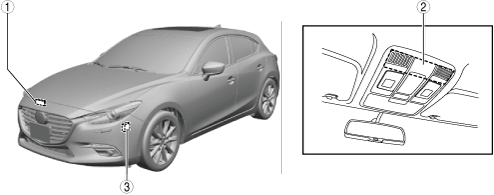

With intruder sensor

am3zzw00018377

1
Bonnet latch switch
(See BONNET LATCH SWITCH INSPECTION.)
2
Intruder sensor
(See INTRUDER SENSOR REMOVAL/INSTALLATION.)
(See INTRUDER SENSOR INSPECTION.)
3
Theft-deterrent siren
(See THEFT-DETERRENT SIREN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT SIREN INSPECTION.)

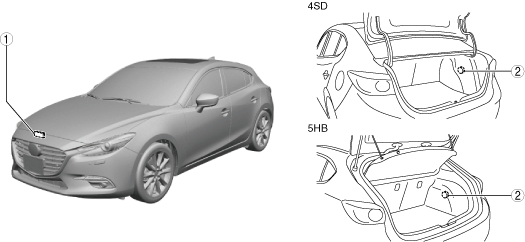

Without intruder sensor

am3zzw00018378

1
Bonnet latch switch
(See BONNET LATCH SWITCH INSPECTION.)
2
Theft-deterrent horn
(See THEFT-DETERRENT HORN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT HORN INSPECTION.)
