FLOOR COVERING REMOVAL/INSTALLATION
id091700803000
1. Set the wheel blocks for both the front and rear wheels (without electric parking brake).
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
3. Shift the selector lever from the P position to the D position (ATX).
4. Remove the following parts:
- (1) Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Lower anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (3) Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
- (4) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (5) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
- (6) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (7) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (8) Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
- (9) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
- (10) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
- (11) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (12) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (13) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
- (14) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (15) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (16) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (17) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (18) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (19) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (20) Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
- (21) Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (22) Electric parking brake control module (with electric parking brake) (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)
- (23) Electric parking brake control module bracket (with electric parking brake) (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
5. Remove the nuts.

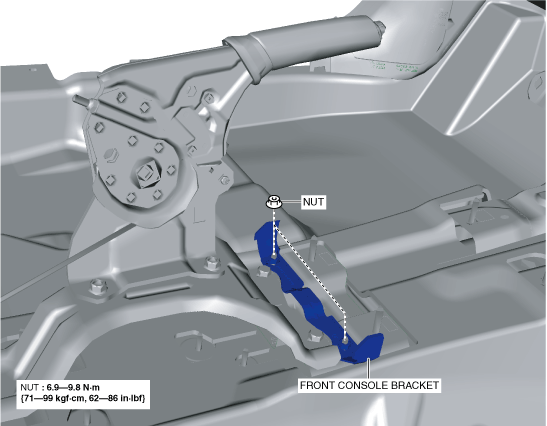

6. Remove the front console bracket.
7. Remove the bolts (without electric parking brake).

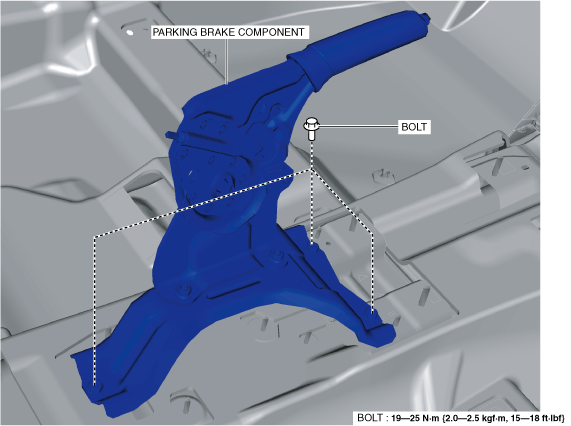

8. Remove the parking brake lever component (without electric parking brake).
9. Disconnect the service plug (with i-ELOOP). (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)
10. Remove the following parts:
- (1) SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
- (2) DC-DC converter (i-ELOOP) (with i-ELOOP) (See DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].)
- (3) Audio amplifier (with Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
- (4) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
- (5) Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 1.6].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
11. Disconnect the dashboard harness connectors.

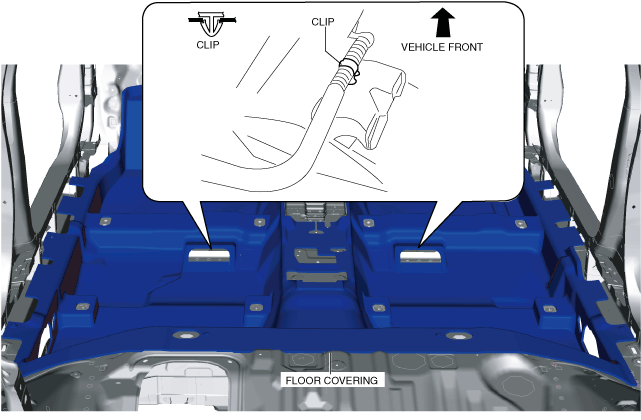

12. Remove the clips shown in the figure.

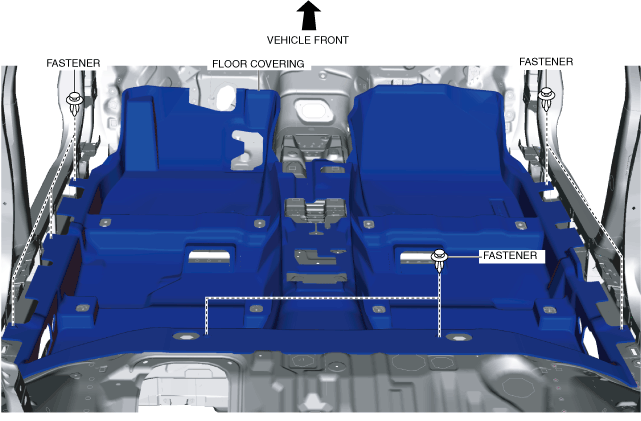

13. Remove the fasteners.
14. Take the out from the door opening.
15. Install in the reverse order of removal. (See Floor Covering Installation Note.)
Floor Covering Installation Note
-
Caution
-

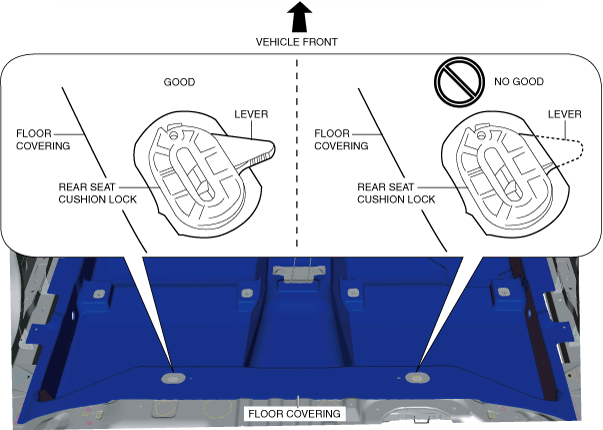

• When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.
1. Place the floor covering with it aligned to the body.
2. Before installing the side wall, verify that the A/C unit drain hose is not deformed.
• If the rear seat cushion lock lever is covered by the floor covering, the rear seat cushion lock cannot be released. When installing the floor covering, do not cover the rear seat cushion lock lever with the floor covering.
