WIPER/WASHER SYSTEM LOCATION INDEX

id091900903000

am3zzw00020217

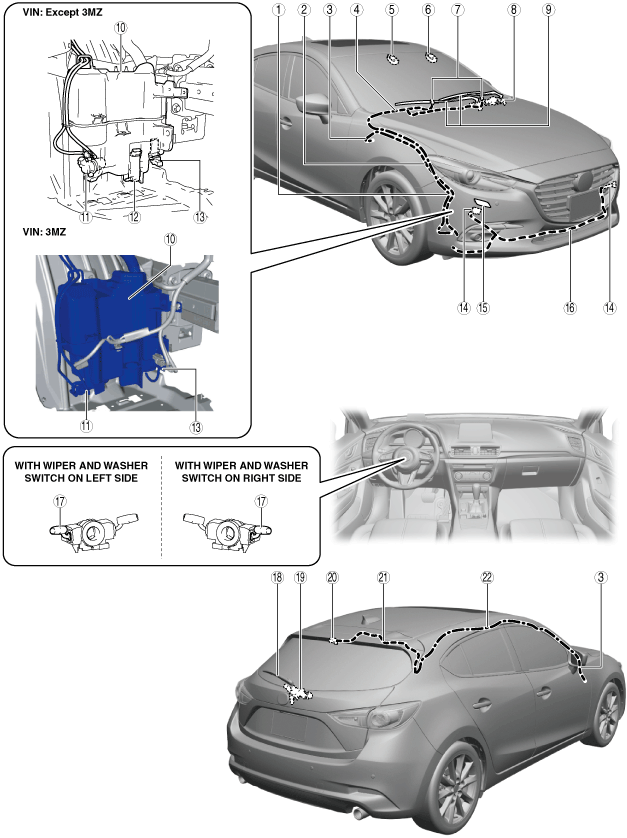

1	Windshield washer hose A (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)
2	Rear washer hose A (5HB) (See REAR WASHER HOSE REMOVAL/INSTALLATION.)
3	Rear washer hose B (5HB) (See REAR WASHER HOSE REMOVAL/INSTALLATION.)
4	Windshield washer hose B (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)
5	Rain sensor (with auto wiper system) (without forward sensing camera (FSC) and smart city brake support (SCBS)) (L.H.D.) (with forward sensing camera (FSC) or smart city brake support (SCBS)) (R.H.D.) (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIALIZATION SETTING.) (See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
6	Rain sensor (with auto wiper system) (with forward sensing camera (FSC) or smart city brake support (SCBS)) (L.H.D.) (without forward sensing camera (FSC) and smart city brake support (SCBS)) (R.H.D.) (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIALIZATION SETTING.) (See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
7	Windshield washer nozzle (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION.) (See WINDSHIELD WASHER NOZZLE ADJUSTMENT.)
8	Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER MOTOR INSPECTION.)
9	Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT.)
10	Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)
11	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION.) (See WASHER MOTOR INSPECTION.)
12	Headlight cleaner motor (with headlight cleaner system) (See HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION.) (See HEADLIGHT CLEANER MOTOR INSPECTION.)
13	Washer fluid-level sensor (with washer fluid-level sensor) (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION.) (See WASHER FLUID-LEVEL SENSOR INSPECTION.)
14	Headlight cleaner actuator (with headlight cleaner system) (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)
15	Headlight cleaner cover (with headlight cleaner system) (See HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION.)
16	Headlight cleaner hose (with headlight cleaner system) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)
17	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.) (See WIPER AND WASHER SWITCH INSPECTION.) (See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
18	Rear wiper arm and blade (5HB) (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See REAR WIPER ARM AND BLADE ADJUSTMENT.)
19	Rear wiper motor (5HB) (See REAR WIPER MOTOR REMOVAL/INSTALLATION.) (See REAR WIPER MOTOR INSPECTION.)
