ENTERTAINMENT LOCATION INDEX

id092000800100

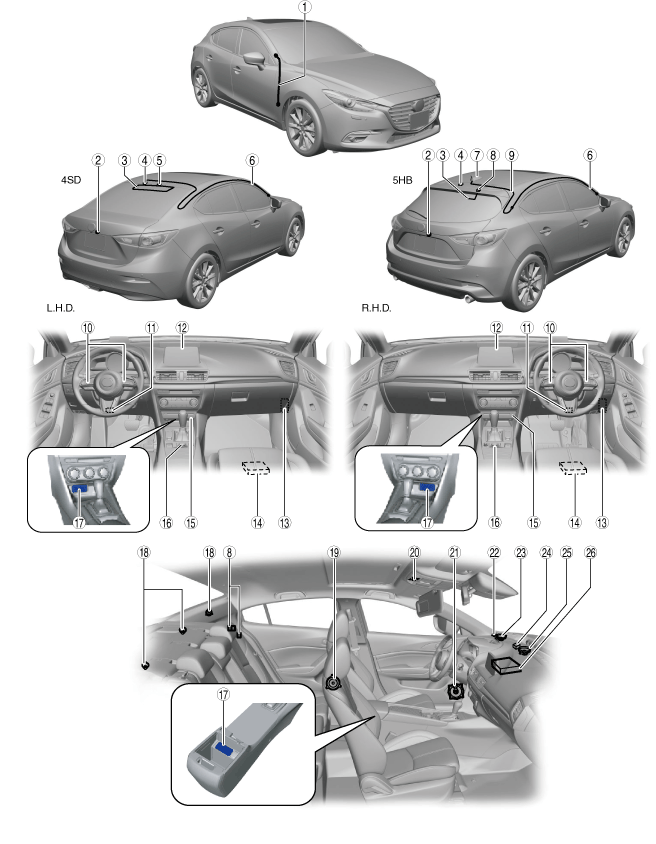

With Center Display

am3zzw00019228

1	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
2	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.)
3	Glass antenna (See GLASS ANTENNA INSPECTION.)
4	DAB antenna amplifier (with DAB antenna) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER INSPECTION.)
5	AM/FM antenna amplifier (See AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)
6	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL.) (See ANTENNA FEEDER NO.2 INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
7	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
8	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
9	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
10	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
11	AudioPilot ®2 microphone (with Bose®) (See AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION.)
12	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
13	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)
14	Audio amplifier (With Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
15	CD player (with CD player) DVD/CD player (with DVD/CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
16	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
17	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION.)
18	Rear speaker (with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See REAR SPEAKER INSPECTION.)
19	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
20	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
21	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
22	Tweeter (without Bose®) (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
23	Front side speaker (with Bose®) (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION.) (See FRONT SIDE SPEAKER INSPECTION.)
24	GPS antenna (with car-navigation system) (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.) (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.) (See GPS ANTENNA FEEDER INSPECTION.)
25	Front center speaker (with Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.) (See FRONT CENTER SPEAKER INSPECTION.)
26	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See Bluetooth® PAIRING PROCEDURE.) (See MAINTENANCE MONITOR OPERATION PROCEDURE.)

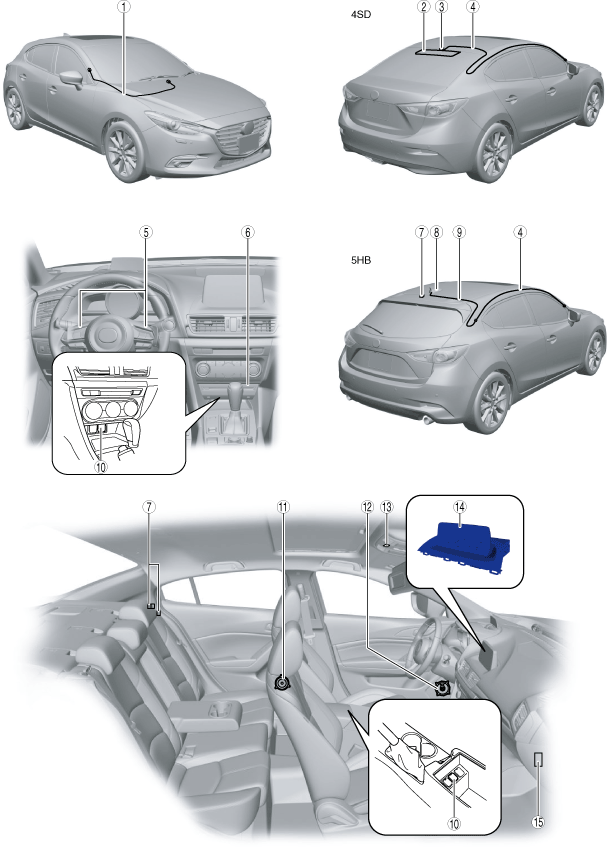

Without Center Display

am3zzw00021006

1	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
2	Glass antenna (See GLASS ANTENNA INSPECTION.)
3	AM/FM antenna amplifier (See AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)
4	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL.) (See ANTENNA FEEDER NO.2 INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
5	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
6	CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
7	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
8	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
9	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
10	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT INSPECTION.)
11	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
12	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
13	Microphone (with Bluetooth® system) (See MICROPHONE REMOVAL/INSTALLATION.)
14	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
15	Bluetooth® unit (with Bluetooth® system) (See Bluetooth® UNIT REMOVAL/INSTALLATION.) (See Bluetooth® PAIRING PROCEDURE.)
