DAB ANTENNA AMPLIFIER INSPECTION

id092000815900

4SD

1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(12)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(13)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(14)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(15)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(16)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(17)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(18)  Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(19)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(20)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(21)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(22)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(23)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(24)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

5.  Remove the shift lever nuts and set the shift lever aside to the front passenger-side to rotate the headliner in the vehicle. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

6.  Remove the selector lever nuts and set the selector lever aside to the front passenger-side to rotate the headliner in the vehicle. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

7.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

8.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

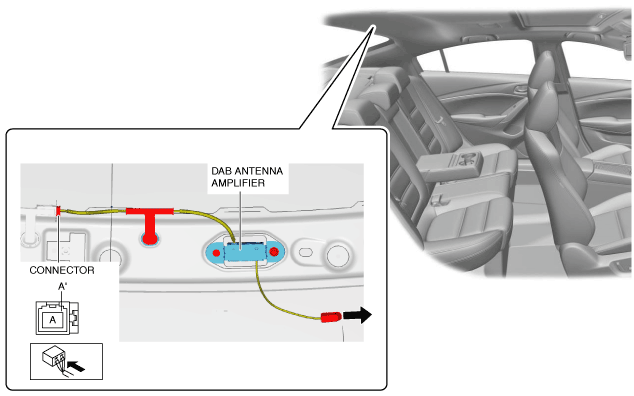

9.  Measure the voltage at DAB antenna amplifier connector terminal A.

am6zzw00014044

If the voltage is the battery voltage:

•  The DAB antenna amplifier is normal.

If the voltage is other than the battery voltage:

•  Inspect the tuner and amp unit and the antenna feeder. (See ANTENNA FEEDER NO.1 INSPECTION.) (See ANTENNA FEEDER NO.2 INSPECTION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)

―  If the tuner and amp unit and the antenna feeder are normal, replace the DAB antenna amplifier. (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)

5HB

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

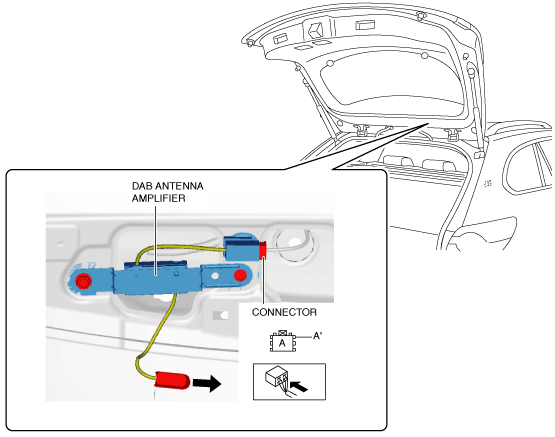

2.  Measure the voltage at DAB antenna amplifier connector terminal A.

am3zzw00016887

If the voltage is the battery voltage:

•  The DAB antenna amplifier is normal.

If the voltage is other than the battery voltage:

•  Inspect the tuner and amp unit and the antenna feeder. (See ANTENNA FEEDER NO.1 INSPECTION.) (See ANTENNA FEEDER NO.2 INSPECTION.) (See ANTENNA FEEDER NO.3 INSPECTION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)

―  If the tuner and amp unit and the antenna feeder are normal, replace the DAB antenna amplifier. (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)
