ANTENNA FEEDER NO.6 INSPECTION

id092000888300

4SD

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2. Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

3. Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4. Partially peel back the seaming welts.

5. Remove the following parts:

(1) Sunroof seaming welt (vehicles with sunroof)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(9) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(10) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(11) Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

(12) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(13) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(14) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(15) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

6. Disconnect the antenna feeder No.5 and connector. (See ANTENNA FEEDER NO.6 REMOVAL/INSTALLATION.)

7. Verify that the continuity between antenna feeder No.6 terminals is as indicated in the table.

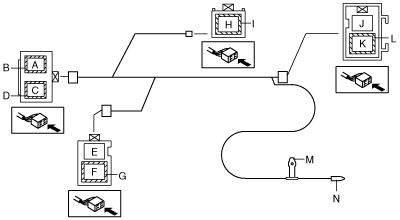

am3zzw00006062

• If not as indicated in the table, replace antenna feeder No.6.

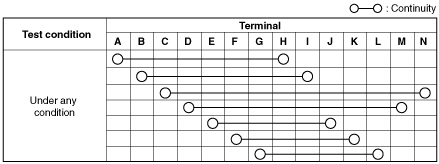

am3zzw00006063
