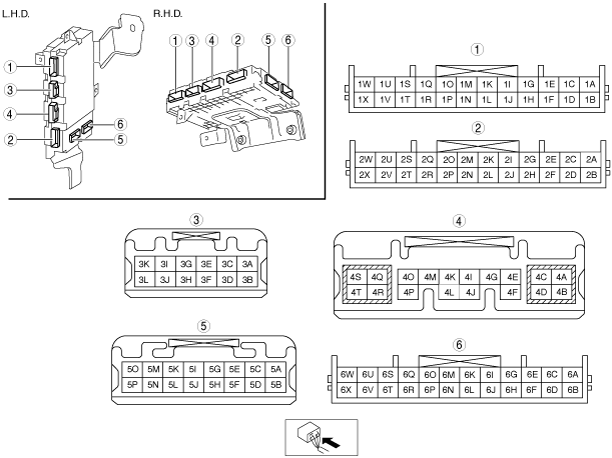

am3zzw00007568
BODY CONTROL MODULE (BCM) INSPECTION
id094000800300
1. Remove the following parts (L.H.D.):
2. Set the bonnet release lever out of the way. (L.H.D.) (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
3. Remove the lower panel. (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
4. Set the starter cut relay out of the way. (with advanced keyless entry and push button start system) (MTX (L.H.D.)) (See STARTER CUT RELAY REMOVAL/INSTALLATION [MTX].)
5. Remove the dashboard under cover. (R.H.D.) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
6. Remove the BCM with the connector connected. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [L.H.D.].) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [R.H.D.].)
7. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.
Terminal Voltage Table (Reference)
am3zzw00007568
|
|
Terminal |
Signal |
Connected to |
Measurement condition |
Voltage (V) |
Inspection item (s) |
|
|---|---|---|---|---|---|---|
|
1A
|
CAN_H
|
CAN system related module
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
1B
|
CAN_L
|
CAN system related module
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
1C
|
Horn control
|
Horn relay
|
Horn not sounded
|
B+
|
• Horn relay
• Related wiring harnesses
|
|
|
Horn sounded
|
1.0 or less
|
|||||
|
1D
|
Rear window defroster relay control
|
Rear window defroster relay
|
Switch the ignition to ON
|
Rear window defroster switch on
|
1.0 or less
|
• Rear window defroster relay
• Related wiring harnesses
|
|
Rear window defroster switch off
|
B+
|
|||||
|
1E
|
Headlight washer relay control
|
Headlight washer relay
|
Switch the ignition to ON
|
Headlight washer not operating
|
B+
|
• Headlight washer relay
• Related wiring harnesses
|
|
Headlight washer operating
|
1.0 or less
|
|||||
|
1F
|
—
|
—
|
—
|
—
|
—
|
|
|
1G
|
TNS control
|
TNS relay
|
Light switch at OFF position
|
B+
|
• TNS relay
• Related wiring harnesses
|
|
|
Light switch at TNS position
|
1.0 or less
|
|||||
|
1H
|
Ambient temperature ground
|
Ambient temperature sensor
|
Under any condition
|
1.0 or less
|
• Ambient temperature sensor
• Related wiring harnesses
|
|
|
1I
|
Headlight relay (HI) control
|
Headlight relay (HI)
|
Light switch at HEAD position
|
Light switch at LO position
|
B+
|
• Headlight relay (HI)
• Related wiring harnesses
|
|
Light switch at HI or PASS position
|
1.0 or less
|
|||||
|
1J*1
|
Bonnet latch switch signal
|
Bonnet latch switch
|
Bonnet open
(Bonnet latch switch off)
|
Wave pattern (See Pattern 1.)
|
• Bonnet latch switch
• Related wiring harnesses
|
|
|
Bonnet closed
(Bonnet latch switch on)
|
1.0 or less
|
|||||
|
1K
|
Headlight relay (LO) control
|
Headlight relay (LO)
|
Light switch at OFF position
|
B+
|
• Headlight relay (LO)
• Related wiring harnesses
|
|
|
Light switch at HEAD position
|
1.0 or less
|
|||||
|
1L
|
Rear fog light relay control
|
Rear fog light relay
|
Light switch at HEAD position
|
Rear fog light switch at off position
|
B+
|
• Rear fog light relay
• Related wiring harnesses
|
|
Rear fog light switch at on position
|
1.0 or less
|
|||||
|
1M
|
Front fog light relay control
|
Front fog light relay
|
Light switch at HEAD position
|
Front fog light switch at off position
|
B+
|
• Front fog light relay
• Related wiring harnesses
|
|
Front fog light switch at on position
|
1.0 or less
|
|||||
|
1N
|
Brake fluid level signal
|
Brake fluid level sensor
|
Switch the ignition to ON
|
Brake fluid level below MIN.
|
B+
|
• Brake fluid level sensor
• Related wiring harnesses
|
|
Brake fluid level above MIN.
|
1.0 or less
|
|||||
|
1O
|
—
|
—
|
—
|
—
|
—
|
|
|
1P
|
—
|
—
|
—
|
—
|
—
|
|
|
1Q
|
Back-up light switch signal
|
• Back-up light switch (MTX)
• Transaxle range switch (ATX)
|
Switch the ignition to ON
|
The selector lever is in the R position
|
B+
|
• Back-up light switch (MTX)
• Transaxle range switch (ATX)
• Related wiring harnesses
|
|
Other
|
1.0 or less
|
|||||
|
1R
|
—
|
—
|
—
|
—
|
—
|
|
|
1S
|
—
|
—
|
—
|
—
|
—
|
|
|
1T
|
Headlight (HI) indicator control
|
Headlight relay (HI)
|
Light switch at HEAD position
|
Light switch at LO position and HI beam indicator not illuminated in instrument cluster
|
1.0 or less
|
• Headlight relay (HI)
• Related wiring harnesses
|
|
Light switch at HI or PASS position and Hi beam indicator illuminated in instrument cluster
|
B+
|
|||||
|
1U
|
—
|
—
|
—
|
—
|
—
|
|
|
1V
|
—
|
—
|
—
|
—
|
—
|
|
|
1W
|
Front fog light indicator control
|
Front fog light relay
|
Light switch at HEAD position
|
Front fog light switch at off position
|
1.0 or less
|
• Front fog light relay
• Related wiring harnesses
|
|
Front fog light switch at on position
|
B+
|
|||||
|
1X
|
Ambient temperature sensor signal
|
Ambient temperature sensor
|
Switch the ignition to ON
|
approx. 2.2
|
• Ambient temperature sensor
• Related wiring harnesses
|
|
|
Switch the ignition to Off
|
1.0 or less
|
|||||
|
2A
|
CAN_H
|
CAN system related module
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
2B
|
CAN_L
|
CAN system related module
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
2C*5
|
LIN signal
|
Climate control unit
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
2D
|
Steering angle sensor ground
|
Steering angle sensor
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
2E
|
Steering angle sensor power supply
|
Steering angle sensor
|
Specified time elapsed since key removal and all doors closed
|
Wave pattern (See Pattern 3.)
|
• Steering angle sensor
• Related wiring harnesses
|
|
|
Switch the ignition to ON
|
approx. 5
|
|||||
|
2F
|
Steering angle sensor signal (B)
|
Steering angle sensor
|
Turn the steering wheel to the left and right.
|
Alternates between 4.00—4.75 and 0.25—0.75
|
• Steering angle sensor
• Related wiring harnesses
|
|
|
2G
|
Steering angle sensor signal (A)
|
Steering angle sensor
|
Turn the steering wheel to the left and right.
|
Alternates between 4.00—4.75 and 0.25—0.75
|
• Steering angle sensor
• Related wiring harnesses
|
|
|
2H
|
Steering angle sensor signal (C)
|
Steering angle sensor
|
Turn the steering wheel to the left and right.
|
Alternates between 4.00—4.75 and 0.25—0.75
|
• Steering angle sensor
• Related wiring harnesses
|
|
|
2I
|
Steering angle sensor signal (Z)
|
Steering angle sensor
|
Steering wheel is in center position
|
0.25—0.75
|
• Steering angle sensor
• Related wiring harnesses
|
|
|
Steering wheel is not in center position
|
4.00—4.75
|
|||||
|
2J
|
Key reminder switch signal
|
Key reminder switch
|
Key inserted
|
B+
|
• Key reminder switch
• Related wiring harnesses
|
|
|
Key removed
|
1.0 or less
|
|||||
|
2K
|
Rear wiper switch (INT) signal
|
Windshield wiper and washer switch
|
Switch the ignition to ON
|
Rear wiper switch at INT position
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Rear wiper switch at OFF position
|
B+
|
|||||
|
2L
|
Rear wiper switch (ON) signal
|
Windshield wiper and washer switch
|
Switch the ignition to ON
|
Rear wiper switch at ON position
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Rear wiper switch at OFF position
|
B+
|
|||||
|
2M
|
Hazard warning switch signal
|
Hazard warning switch
|
Hazard warning switch on
|
1.0 or less
|
• Hazard warning switch
• Related wiring harnesses
|
|
|
Hazard warning switch off
|
B+
|
|||||
|
2N
|
Signal ground
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
2O
|
Turn switch input (RH)
|
Turn switch
|
Switch the ignition to ON
|
Turn switch at right position
|
1.0 or less
|
• Turn switch
• Related wiring harnesses
|
|
Other
|
B+
|
|||||
|
2P
|
Turn switch input (LH)
|
Turn switch
|
Switch the ignition to ON
|
Turn switch at left position
|
1.0 or less
|
• Turn switch
• Related wiring harnesses
|
|
Other
|
B+
|
|||||
|
2Q
|
Parking brake switch signal
|
Parking brake switch
|
Switch the ignition to ON
|
Parking brake applied
(Parking brake switch on)
|
1.0 or less
|
• Parking brake switch
• Related wiring harnesses
|
|
Parking brake not applied
(Parking brake switch off)
|
B+
|
|||||
|
2R
|
Rear window defroster switch signal
|
Climate control unit
|
Rear window defroster switch pressed
|
1.0 or less
|
• Climate control unit
• Related wiring harnesses
|
|
|
Rear window defroster switch not pressed
|
approx. 4.5
|
|||||
|
2S
|
Rear fog light switch signal
|
Fog light switch
|
Light switch at HEAD position
|
Rear fog light switch at on position
|
1.0 or less
|
• Fog light switch
• Related wiring harnesses
|
|
Rear fog light switch at off position
|
B+
|
|||||
|
2T
|
Headlight switch signal (HI)
|
Light switch
|
Light switch at HEAD position
|
Light switch at LO position
|
B+
|
• Light switch
• Related wiring harnesses
|
|
Light switch at HI or PASS position
|
1.0 or less
|
|||||
|
2U
|
Horn switch signal
|
• Horn switch
• Clock spring
|
Horn switch is pressed
|
1.0 or less
|
• Horn switch
• Clock spring
• Related wiring harnesses
|
|
|
Horn switch is not pressed
|
B+
|
|||||
|
2V
|
Headlight switch signal (TNS)
|
Light switch
|
Light switch at TNS position
|
1.0 or less
|
• Light switch
• Related wiring harnesses
|
|
|
Light switch at OFF position
|
B+
|
|||||
|
2W
|
Front fog light switch signal
|
Front fog light switch
|
Light switch at HEAD position
|
Front fog Light switch at on position
|
1.0 or less
|
• Front fog light switch
• Related wiring harnesses
|
|
Front fog Light switch at off position
|
B+
|
|||||
|
2X
|
Headlight switch signal (LO)
|
Light switch
|
Light switch at HEAD position
|
1.0 or less
|
• Light switch
• Related wiring harnesses
|
|
|
Light switch at OFF position
|
B+
|
|||||
|
3A
|
Rear washer motor control
|
Windshield washer motor
|
Switch the ignition to ON
|
Rear washer switch on
|
B+
|
• Windshield washer motor
• Related wiring harnesses
|
|
Rear washer switch off
|
1.0 or less
|
|||||
|
3B
|
—
|
—
|
—
|
—
|
—
|
|
|
3C
|
Front washer motor control
|
Windshield washer motor
|
Switch the ignition to ON
|
Windshield washer switch on
|
B+
|
• Windshield washer motor
• Related wiring harnesses
|
|
Windshield washer switch off
|
1.0 or less
|
|||||
|
3D
|
—
|
—
|
—
|
—
|
—
|
|
|
3E
|
Front wiper motor (HI) control
|
Windshield wiper motor
|
Switch the ignition to ON
|
Windshield wiper switch in HI position
|
B+
|
• Windshield wiper motor
• Related wiring harnesses
|
|
Windshield wiper switch in off position
|
1.0 or less
|
|||||
|
3F
|
—
|
—
|
—
|
—
|
—
|
|
|
3G
|
Auto stop switch signal
|
Windshield washer motor
|
Switch the ignition to ON
|
Windshield wiper operating
|
B+
|
• Windshield washer motor
• Related wiring harnesses
|
|
Windshield wiper not operating
|
1.0 or less
|
|||||
|
3H
|
—
|
—
|
—
|
—
|
—
|
|
|
3I
|
Front wiper motor (LO) control
|
Windshield wiper motor
|
Switch the ignition to ON
|
Windshield wiper switch in LO position
|
B+
|
• Windshield wiper motor
• Related wiring harnesses
|
|
Windshield wiper switch in off position
|
1.0 or less
|
|||||
|
3J
|
Interior light power supply
|
ROOM 15 A fuse
|
Under any condition
|
B+
|
• ROOM 15 A fuse
• Related wiring harnesses
|
|
|
3K
|
Front turn light (LH) control
|
• Front turn light (LH)
• Side turn light (LH) (Front fender panel type)
|
Front turn light (LH) flashes
|
Alternates between 1.0 or less and B+
|
• Front turn light (LH)
• Side turn light (LH)
• Related wiring harnesses
|
|
|
Front turn light (LH) not illuminated
|
1.0 or less
|
|||||
|
3L
|
Front turn light (RH) control
|
• Front turn light (RH)
• Side turn light (RH) (Front fender panel type)
|
Front turn light (RH) flashes
|
Alternates between 1.0 or less and B+
|
• Front turn light (RH)
• Side turn light (RH)
• Related wiring harnesses
|
|
|
Front turn light (RH) not illuminated
|
1.0 or less
|
|||||
|
4A
|
Power door lock power supply
|
D.LOCK 25 A fuse
|
Under any condition
|
B+
|
• D.LOCK 25 A fuse
• Related wiring harnesses
|
|
|
4B
|
Power ground
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
4C
|
IG2
|
F.WIPER 25 A fuse
|
Switch the ignition to ON
|
B+
|
• F.WIPER 25 A fuse
• Related wiring harnesses
|
|
|
Switch the ignition to Off
|
1.0 or less
|
|||||
|
4D
|
Power ground
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
4E
|
Ignition key illumination control
|
Push button start illumination (with advanced keyless entry and push button start system)
|
Switch the ignition to off and driver-side door opened or TNS ON.
|
1.0 or less
|
• Push button start illumination (with advanced keyless entry and push button start system)
• Related wiring harnesses
|
|
|
15 s or more after all doors closed and TNS off.
|
B+
|
|||||
|
Ignition key illumination (with keyless entry system)
|
Switch the ignition to off and driver-side door opened.
|
1.0 or less
|
• Ignition key illumination (with keyless entry system)
• Related wiring harnesses
|
|||
|
15 s or more after all doors closed.
|
B+
|
|||||
|
4F
|
—
|
—
|
—
|
—
|
—
|
|
|
4G
|
Rear window defroster indicator light control
|
Climate control unit
|
Switch the ignition to ON
|
Rear window defroster switch pressed and rear window defroster indicator light illuminated
|
1.0 or less
|
• Climate control unit
• Related wiring harnesses
|
|
Rear window defroster switch pressed and rear window defroster indicator light not illuminated
|
B+
|
|||||
|
4H
|
—
|
—
|
—
|
—
|
—
|
|
|
4I
|
Front wiper switch (AUTO) signal (with auto wiper system)
|
Windshield wiper and washer switch
|
Switch the ignition to ON
|
Windshield wiper switch in AUTO position
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Windshield wiper switch in off position
|
B+
|
|||||
|
Front wiper switch (INT) signal (without auto wiper system)
|
Switch the ignition to ON
|
Windshield wiper switch in INT position
|
1.0 or less
|
|||
|
Windshield wiper switch in off position
|
B+
|
|||||
|
4J
|
Front wiper switch (LO) signal
|
Windshield wiper and washer switch
|
Switch the ignition to ON
|
Windshield wiper switch in LO position
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Windshield wiper switch in off position
|
B+
|
|||||
|
4K
|
Serial communication
|
• Keyless control module (with advanced keyless entry and push button start system)
• Keyless receiver (without advanced keyless entry and push button start system)
• Instrument cluster
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
4L
|
Sensitivity adjustment volume (with auto wiper system)
|
Windshield wiper and washer switch
|
Sensitivity adjustment volume turned from - position to + position when ignition is switched ON
|
Switch position -2 position
|
4.2
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Switch position -1 position
|
3.8
|
|||||
|
Switch position 0 position
|
3.1
|
|||||
|
Switch position +1 position
|
1.7
|
|||||
|
Switch position +2 position
|
1.0 or less
|
|||||
|
INT volume (without auto wiper system)
|
INT volume turned from MAX HI to MAX LO when ignition is switched ON
|
INT volume at MAX HI position
|
1.0 or less
|
|||
|
INT volume at MAX LO position
|
4.5
|
|||||
|
4M
|
Front wiper switch (HI) signal
|
Windshield wiper and washer switch
|
Switch the ignition to ON
|
Windshield wiper switch in HI position
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Windshield wiper switch in off position
|
B+
|
|||||
|
4N
|
—
|
—
|
—
|
—
|
—
|
|
|
4O
|
Rear washer switch signal
|
Windshield wiper and washer switch
|
Switch the ignition to ON
|
Rear washer switch on
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Rear washer switch off
|
B+
|
|||||
|
4P
|
Front washer switch signal
|
Windshield wiper and washer switch
|
Switch the ignition to ON
|
Windshield washer switch on
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
Windshield washer switch off
|
B+
|
|||||
|
4Q
|
IG2
|
• R.WIPER 15A fuse
• Rear wiper motor
|
Switch the ignition to ON
|
B+
|
• R.WIPER 15A fuse
• Rear wiper motor
• Related wiring harnesses
|
|
|
Switch the ignition to Off
|
1.0 or less
|
|||||
|
4R
|
Signal ground
|
Windshield wiper and washer switch
|
Under any condition
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harnesses
|
|
|
4S
|
Hazard power supply
|
HAZARD 15A fuse
|
Under any condition
|
B+
|
• HAZARD 15A fuse
• Related wiring harnesses
|
|
|
4T
|
Power supply
|
METER 15 A fuse
|
Switch the ignition to ON
|
B+
|
• METER 15 A fuse
• Related wiring harnesses
|
|
|
Switch the ignition to Off
|
1.0 or less
|
|||||
|
5A
|
Rear wiper motor control
|
Rear wiper motor
|
Rear wiper operating
|
1.0 or less
|
• Rear wiper motor
• Related wiring harnesses
|
|
|
Rear wiper not operating
|
B+
|
|||||
|
5B
|
Interior light power supply
|
• Map light
• Interior light
• Trunk compartment light (4SD)
• Cargo compartment light (5HB)
|
Under any condition
|
B+
|
• Map light
• Interior light
• Trunk compartment light (4SD)
• Cargo compartment light (5HB)
• Related wiring harnesses
|
|
|
5C
|
Rear turn light (RH) control
|
• Rear turn light (RH)
• Side turn light (RH) (Outer mirrortype)
|
Rear turn light (RH) flashes
|
Alternates between 1.0 or less and B+
|
• Rear turn light (RH)
• Side turn light (RH)
• Related wiring harnesses
|
|
|
Rear turn light (RH) not illuminated
|
1.0 or less
|
|||||
|
5D
|
—
|
—
|
—
|
—
|
—
|
|
|
5E
|
Rear turn light (LH) control
|
• Rear turn light (LH)
• Side turn light (LH) (Outer mirrortype)
|
Rear turn light (LH) flashes
|
Alternates between 1.0 or less and B+
|
• Rear turn light (LH)
• Side turn light (LH)
• Related wiring harnesses
|
|
|
Rear turn light (LH) not illuminated
|
1.0 or less
|
|||||
|
5F
|
—
|
—
|
—
|
—
|
—
|
|
|
5G
|
• Liftgate latch and lock motor power supply (5HB)
• Trunk lid latch and lock actuator power supply (4SD)
|
• Liftgate lock actuator (5HB)
• Trunk lid release actuator (4SD)
|
• Liftgate opener switch pressed, liftgate lock motor operation (5HB)
• Trunk lid opener switch pressed, trunk lid lock actuator operation (4SD)
|
1.0 or less → B+→ 1.0 or less
|
• Liftgate lock actuator (5HB)
• Trunk lid release actuator (4SD)
• Related wiring harnesses
|
|
|
Not operation
|
1.0 or less
|
|||||
|
5H
|
—
|
—
|
—
|
—
|
—
|
|
|
5I*2
|
LIN signal
|
Auto light sensor / rain sensor
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
5J
|
—
|
—
|
—
|
—
|
—
|
|
|
5K*4
|
Double locking system door lock control
|
Door lock actuators
|
Double-locking system is adopted
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuators
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
5L
|
—
|
—
|
—
|
—
|
—
|
|
|
5M
|
Door unlock control
|
Door lock actuators
|
Door lock actuator unlocking
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuators
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
5N
|
Interior light control
|
• Map light
• Interior light
|
Map light and interior light not illuminated with all doors closed
|
After map light and interior light illuminate by opening any door, map light and interior light turn off by closing all doors.
|
• Map light
• Interior light
• Related wiring harnesses
|
|
|
5O
|
Door lock control
|
Door lock actuators
|
Door lock actuator locking
|
1.0 or less → B+→ 1.0 or less
|
• Door lock actuators
• Related wiring harnesses
|
|
|
Other
|
1.0 or less
|
|||||
|
5P
|
—
|
—
|
—
|
—
|
—
|
|
|
6A
|
Auto light control
|
Light switch
|
Switch the ignition ON
|
Light switch at auto light position
|
1.0 or less
|
• Light switch
• Related wiring harnesses
|
|
Light switch at OFF position
|
B+
|
|||||
|
6B
|
Driver-side door key cylinder switch signal
|
Door key cylinder switch (Driver-side)
|
At the moment key cylinder is unlocked
|
1.0 or less
|
• Door key cylinder switch (Driver-side)
• Related wiring harnesses
|
|
|
At the moment key cylinder is locked
|
2.2
|
|||||
|
Other
|
4.5
|
|||||
|
6C
|
—
|
—
|
—
|
—
|
—
|
|
|
6D
|
—
|
—
|
—
|
—
|
—
|
|
|
6E
|
Rear door switch (LH) signal
|
Door latch switch (LR)
|
Rear door switch (LH) open
(Rear door switch (LH) off)
|
Wave pattern (See Pattern 1.)
|
• Rear door switch (LH)
• Related wiring harnesses
|
|
|
Rear door (LH) closed
(Rear door switch (LH) on)
|
1.0 or less
|
|||||
|
6F
|
• Cargo compartment light switch (5HB) signal
• Trunk compartment light switch (4SD) signal
|
• Cargo compartment light switch (5HB)
• Trunk compartment light switch (4SD)
|
Liftgate/trunk lid is open.
(Cargo/trunk compartment light switch on)
|
1.0 or less
|
• Cargo compartment light switch (5HB)
• Trunk compartment light switch (4SD)
• Related wiring harnesses
|
|
|
Liftgate/trunk lid is closed.
(Cargo/trunk compartment light switch off)
|
B+
|
|||||
|
6G
|
Front door switch (driver side) signal
|
Door latch switch (driver side)
|
Front door (driver side) open
(Front door switch (driver side) off)
|
Wave pattern (See Pattern 2.)
|
• Door latch switch (driver side)
• Related wiring harnesses
|
|
|
Front door (driver side) closed
(Front door switch (driver side) on)
|
1.0 or less
|
|||||
|
6H
|
Front door switch (passenger side) signal
|
Door latch switch (passenger side)
|
Front door (passenger side) open
(Front door switch (passenger side) off)
|
Wave pattern (See Pattern 2.)
|
• Door latch switch (passenger side)
• Related wiring harnesses
|
|
|
Front door (passenger side) closed
(Front door switch (passenger side) on)
|
1.0 or less
|
|||||
|
6I
|
Lock input (Driver-side door lock-link switch) (with keyless entry system)
|
Driver-side door lock-link switch
|
Driver-side door locked
|
1.0 or less
|
• Driver-side door lock-link switch
• Related wiring harnesses
|
|
|
Driver-side door unlocked
|
Wave pattern (See Pattern 1.)
|
|||||
|
Lock input (Driver-side door lock-link switch) (with advanced keyless entry and start system)
|
• Driver-side door lock-link switch
• Keyless control module
|
Driver-side door locked
|
1.0 or less
|
• Driver-side door lock-link switch
• Keyless control module
• Related wiring harnesses
|
||
|
Driver-side door unlocked
|
approx. 4.6
|
|||||
|
6J*1
|
Lock/unlock input (passenger-side door lock-link switch)
(rear door lock link switch (RH, LH))
|
• Door lock-link switch (passenger-side)
• Door lock link switch (LR, RR)
|
Door locked (All doors except driver's door)
|
Wave pattern (See Pattern 1.)
|
• Door lock-link switch (passenger-side)
• Door lock link switch (LR, RR)
• Related wiring harnesses
|
|
|
Door unlocked (All doors except driver's door)
|
1.0 or less
|
|||||
|
6K
|
Rear door switch (RH) signal
|
Door latch switch (RR)
|
Rear door (RH) open
(Rear door switch (RH) off)
|
Wave pattern (See Pattern 1.)
|
• Rear door switch (RH)
• Related wiring harnesses
|
|
|
Rear door (RH) closed
(Rear door switch (RH) on)
|
1.0 or less
|
|||||
|
6L
|
Unlock input (Driver-side door lock-link switch)
|
Door lock-link switch (driver-side)
|
Driver-side door locked
|
Wave pattern (See Pattern 1.)
|
• Door lock-link switch (driver-side)
• Related wiring harnesses
|
|
|
Driver-side door unlocked
|
1.0 or less
|
|||||
|
6M
|
Rear fog light indicator control
|
Rear fog light relay
|
Light switch at HEAD position
|
Rear fog light switch at off position
|
1.0 or less
|
• Rear fog light relay
• Related wiring harnesses
|
|
Rear fog light switch at on position
|
B+
|
|||||
|
6N
|
—
|
—
|
—
|
—
|
—
|
|
|
6O
|
Opener switch control
|
• Trunk lid opener switch (4SD)
• Liftgate opener switch (5HB)
|
Opener-switch pressed
|
approx. 3.4*2
|
• Trunk lid opener switch
• Liftgate opener switch
• Related wiring harnesses
|
|
|
approx. 3.9*3
|
||||||
|
Opener-switch not pressed
|
approx. 4.5
|
|||||
|
6P*1
|
Intruder sensor signal ground
|
• Theft-deterrent siren
• Intruder sensor
|
Under any condition
|
1.0 or less
|
• Related wiring harnesses
|
|
|
6Q
|
Power window switch illumination control
|
Power window switch illumination light
|
Power window switch illumination and foot lights are illuminated by opening/closing door
|
1.0 or less
|
• Power window switch illumination light
• Related wiring harnesses
|
|
|
After 15 s or more elapsed since illumination of power window switch illumination and foot lights by opening/closing door
|
B+
|
|||||
|
6R
|
Serial communication
|
Power window main switch
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
6S
|
Opener switch ground
|
• Trunk lid opener switch (4SD)
• Liftgate opener switch (5HB)
• Keyless control module*2
|
Opener-switch pressed
|
approx. 3.4*2
|
• Trunk lid opener switch (4SD)
• Liftgate opener switch (5HB)
• Keyless control module*2
• Related wiring harnesses
|
|
|
approx. 3.9*3
|
||||||
|
Opener-switch not pressed
|
1.0 or less
|
|||||
|
6T
|
—
|
—
|
—
|
—
|
—
|
|
|
6U*1
|
Intruder sensor signal
|
• Theft-deterrent siren
• Intruder sensor
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
|||
|
6V
|
—
|
—
|
—
|
—
|
—
|
|
|
6W
|
—
|
—
|
—
|
—
|
—
|
|
|
6X
|
—
|
—
|
—
|
—
|
—
|
|
Generated pulse (reference)
Pattern 1
am3zzw00007569
|
Pattern 2
am3zzw00010353
|
Pattern 3
am3uuw00007388
|
Inspection Using an Oscilloscope (Reference)
Interior light control
am3zzw00008799
|
