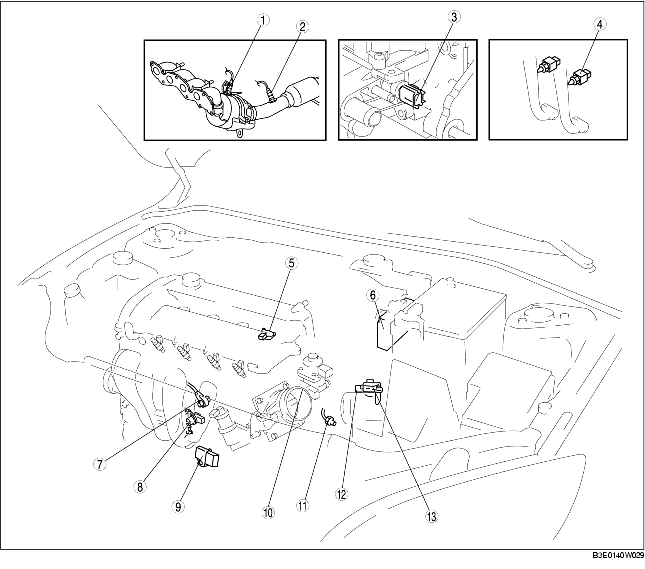

1
|
Front HO2S
|
|
2
|
Rear HO2S
|
|
3
|
ECT sensor
|
|
4
|
CPP switch (MTX)
|
|
5
|
CMP sensor
|
|
6
|
PCM
(See PCM INSPECTION [LF, L3].)
(See PCM CONFIGURATION [LF, L3].)
|
|
7
|
KS
|
|
8
|
CKP sensor
|
|
9
|
MAP sensor
|
|
10
|
TP sensor
|
|
11
|
Neutral switch (MTX)
|
|
12
|
BARO sensor
|
|
13
|
MAF/IAT sensor
|
