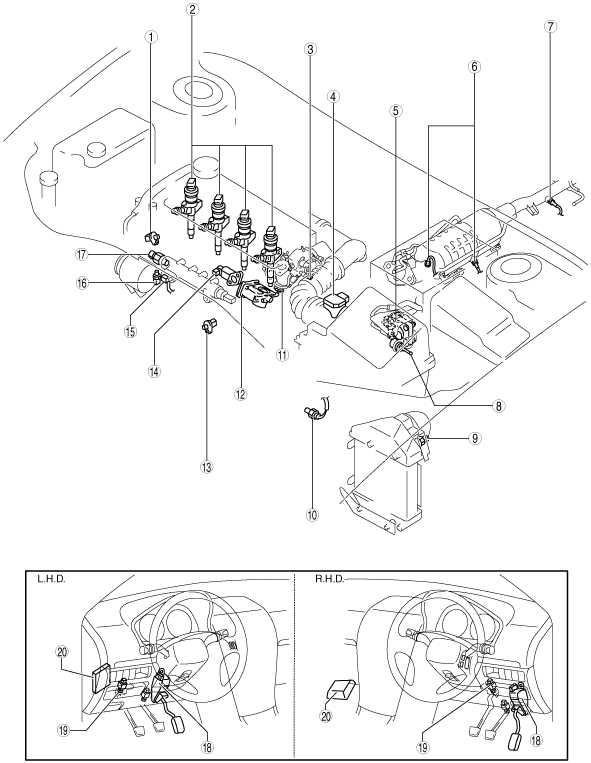

CONTROL SYSTEM LOCATION INDEX [MZR-CD 2.2]

id0140f2804100

am6zzw00004170

1	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZR-CD 2.2].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZR-CD 2.2].)
2	Fuel injector (See FUEL INJECTOR INJECTION AMOUNT CORRECTION [MZR-CD 2.2].) (See FUEL INJECTOR CODE PROGRAM [MZR-CD 2.2].)
3	Fuel temprature sensor (See FUEL TEMPERATURE SENSOR INSPECTION [MZR-CD 2.2].)
4	MAF/IAT sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZR-CD 2.2].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZR-CD 2.2].)
5	Exhaust gas pressure sensor (See EXHAUST GAS PRESSURE SENSOR INSPECTION [MZR-CD 2.2].)
6	Exhaust gas temprature sensor (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [MZR-CD 2.2].)
7	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR-CD 2.2].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [MZR-CD 2.2].)
8	Exhaust gas pressure correction temperature sensor (See EXHAUST GAS PRESSURE SENSOR/EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZR-CD 2.2].) (See EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR INSPECTION [MZR-CD 2.2].)
9	IAT sensor No.2 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 INSPECTION [MZR-CD 2.2].)
10	Neutral switch (See NEUTRAL SWITCH INSPECTION [MZR-CD 2.2].)
11	Guide blade actuator position sensor (See GUIDE BLADE ACTUATOR POSITION SENSOR INSPECTION [MZR-CD 2.2].)
12	Intake shutter valve position sensor (See INTAKE SHUTTER VALVE POSITION SENSOR INSPECTION [MZR-CD 2.2].)
13	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR-CD 2.2].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [MZR-CD 2.2].)
14	EGR valve position sensor (See EGR VALVE POSITION SENSOR INSPECTION [MZR-CD 2.2].)
15	Boost sensor (See BOOST SENSOR INSPECTION [MZR-CD 2.2].)
16	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZR-CD 2.2].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZR-CD 2.2].)
17	Fuel pressure sensor (See FUEL PRESSURE SENSOR INSPECTION [MZR-CD 2.2].)
18	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZR-CD 2.2].)
19	CPP switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR-CD 2.2].)
20	PCM (See PCM REMOVAL/INSTALLATION [MZR-CD 2.2].) (See PCM INSPECTION [MZR-CD 2.2].) (See PCM CONFIGURATION [MZR-CD 2.2].)
