DTC U3003:16 [BCM]


id0902f5933600


Description

•  BCM power supply voltage malfunction

Detection Condition

•  BCM power supply voltage is low.

Possible Causes

•  Battery malfunction
•  Generator malfunction
•  BCM connector or terminals malfunction
•  Open or short to ground in wiring harness in BCM power supply circuit
―  Short to ground in wiring harness between HAZARD 10 A fuse and BCM terminal 2J
―  HAZARD 10 A fuse malfunction
―  Open circuit in wiring harness between battery positive terminal and BCM terminal 2J
•  BCM malfunction

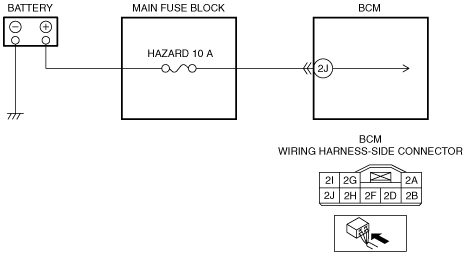

System Wiring Diagram

am6zzw00007174

Diagnostic Procedure

Step

Inspection

Action

1
PERFORM DTC INSPECTION
•  Clear the DTCs using the M-MDS.
•  Perform the BCM DTC inspection using the M-MDS.
•  Is the DTC U3003:16 present?
Yes
Go to the next step.
No
DTC troubleshooting completed.
2
INSPECT PCM DTC
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
Go to the next step.
3
INSPECT BATTERY
•  Is there any malfunction?
Yes
Recharge or replace the battery, then go to Step 7.
No
Go to the next step.
4
INSPECT GENERATOR
•  Is there any malfunction?
Yes
Replace the generator, then go to Step 7.
No
Go to the next step.
5
INSPECT BCM CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the BCM connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 7.
No
Go to the next step.
6
INSPECT BCM POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT OR SHORT TO GROUND
•  BCM connector is disconnected.
•  Reconnect the negative battery cable.
•  Measure the voltage at the BCM terminal 2J (wiring harness-side).
•  Is the voltage B+?
Yes
Go to the next step.
No
Inspect the HAZARD 10 A fuse.
•  If the fuse is melt:
―  Repair or replace the wiring harness for a possible short to ground.
―  Replace the fuse.
•  If the fuse is deterioration:
―  Replace the fuse.
•  If the fuse is normal:
―  Repair or replace the wiring harness for a possible open circuit.
Go to the next step.
7
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTCs using the M-MDS.
•  Perform the BCM DTC inspection using the M-MDS.
•  Is the DTC U3003:16 present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the BCM.
Go to the next step.
No
Go to the next step.
8
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
