FLOOR COVERING REMOVAL/INSTALLATION

id091700803000

4SD

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

(3)  Audio amplifier (Vehicles with Bose^® system) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(8)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(10)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(11)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(12)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(13)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(14)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(15)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(16)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(17)  Fuel-filler lid opener bezel (See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION.)

(18)  Lower anchor of the front seat belt installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

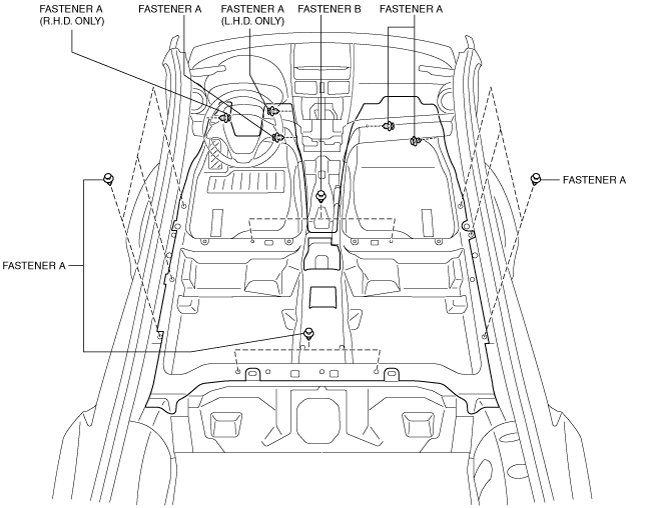

3.  Remove the fasteners A and B.

am6zzw00004554

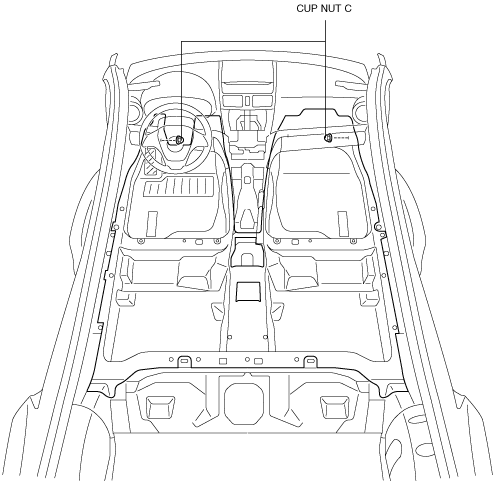

4.  Remove the cap nuts C.

am6zzw00000831

5.  Take the floor covering off from the front passenger-side door opening.

6.  Install in the reverse order of removal.

5HB, Wagon

1.  Disconnect the negative battery cable.

2.  Lift the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON])

3.  Remove the following parts:

(1)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Audio amplifier (Vehicles with Bose^® system) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6)  Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(7)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(8)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(9)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(10)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(11)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(12)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(13)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(14)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(15)  Fuel-filler lid opener bezel (See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION.)

(16)  Lower anchor of the front seat belt installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

4.  Remove the fasteners. A and B

am6zzw00004555

5.  Remove the cap nuts C.

am6zzw00000833

6.  Take the floor covering off from the front passenger-side door opening.

7.  Install in the reverse order of removal.
