REAR VEHICLE MONITORING BRACKET REMOVAL/INSTALLATION
id092200198900
1. Disconnect the negative battery cable.
2. Peel off the seaming welt.
3. Remove the following parts: (4SD)
- (1) Trunk mat
- (2) Trunk board
- (3) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (4) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (5) Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
- (6) Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
- (7) Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)
- (8) Rear vehicle monitoring control module. (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.)
4. Remove the following parts: (5HB)
- (1) Service hole cover
- (2) Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
- (3) Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
- (4) Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)
- (5) Rear vehicle monitoring control module. (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.)
5. Remove the following parts: (WAGON)
- (1) Trunk mat
- (2) Trunk board
- (3) Sub-trunk
- (4) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (5) Rear scuff plate (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (6) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (7) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (9) Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
- (10) Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
- (11) Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)
- (12) Rear vehicle monitoring control module. (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.)

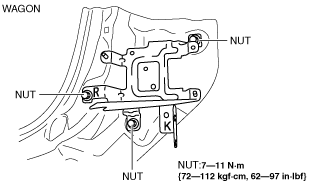

6. Remove the nuts.
7. Remove the rear vehicle monitoring bracket.
8. Install in the reverse order of removal.
9. Perform radar aiming. (See REAR VEHICLE MONITORING RADAR AIMING.)
