ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

id092000812200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(5)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(6)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(7)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)

(9)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

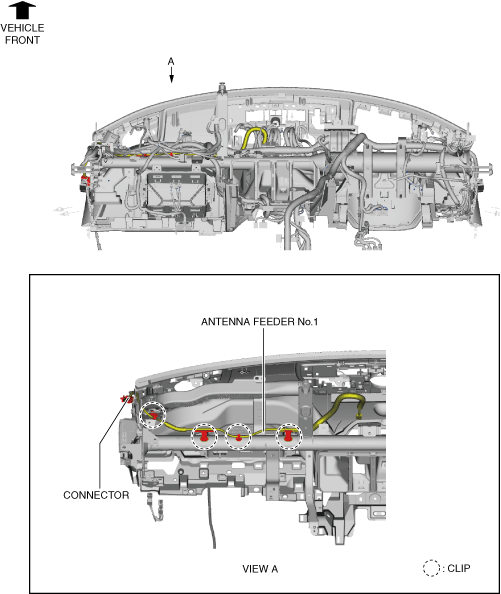

3.  Disconnect the connector.

am6zzw00016398

4.  Remove the clips.

5.  Remove antenna feeder No.1.

6.  Install in the reverse order of removal.
