HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1803600


L.H.D. (LF, L8, L5)

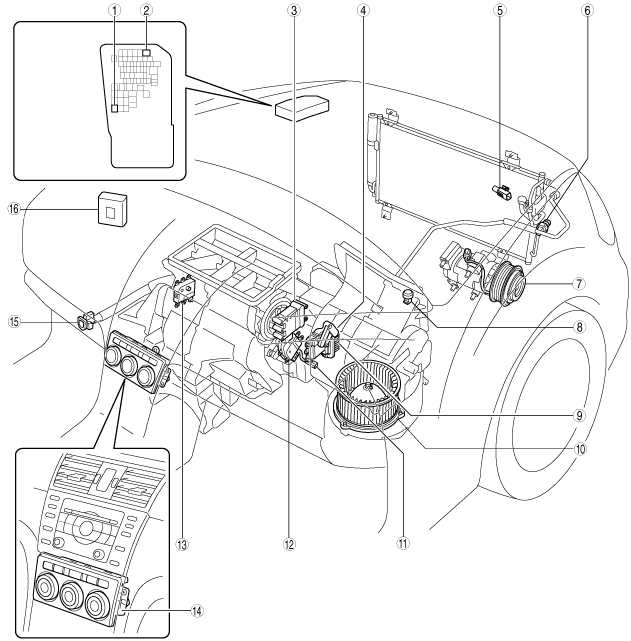

am6zzw00004679

1
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6
Refrigerant pressure switch
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
10
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Passenger’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Driver’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
PCM
(See PCM REMOVAL/INSTALLATION [L8, LF, L5].)
(See PCM INSPECTION [L8, LF, L5].)
(See PCM CONFIGURATION [L8, LF, L5].)


L.H.D. (MZR-CD (RF Turbo))

am6zzw00003507

1
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6
Refrigerant pressure switch
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Water heater unit (MZR-CD (RF Turbo))
(See WATER HEATER UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See WATER HEATER SYSTEM OPERATION CHECK [FULL-AUTO AIR CONDITIONER].)
10
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Passenger’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
Driver’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17
PCM
(See PCM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
(See PCM INSPECTION [MZR-CD (RF Turbo)].)
(See PCM CONFIGURATION [MZR-CD (RF Turbo)].)
(See PCM REPROGRAMMING [MZR-CD (RF Turbo)].)


L.H.D. (MZR-CD 2.2)

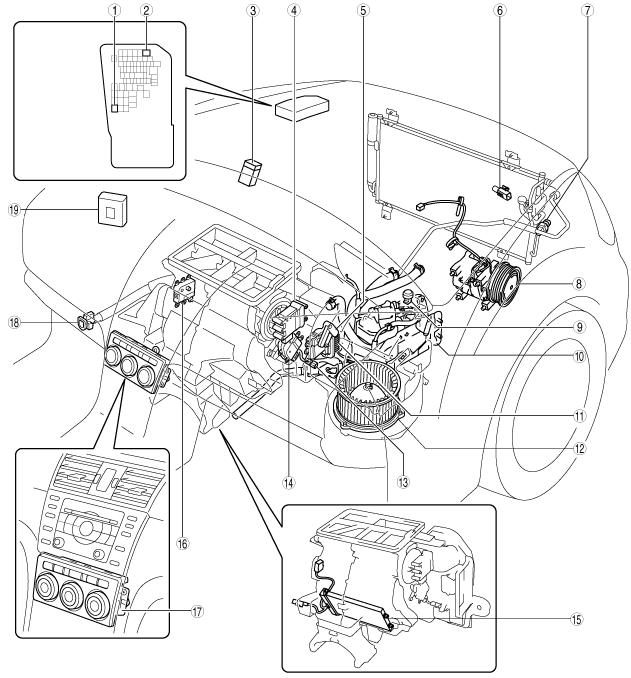

am6zzw00004214

1
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
PTC heater relay
4
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Refrigerant pressure switch
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10
Water heater unit (MZR-CD (RF Turbo))
(See WATER HEATER UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See WATER HEATER SYSTEM OPERATION CHECK [FULL-AUTO AIR CONDITIONER].)
11
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
Passenger’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
PTC heater
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
Driver’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
18
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
19
PCM
(See PCM REMOVAL/INSTALLATION [MZR-CD 2.2].)
(See PCM INSPECTION [MZR-CD 2.2].)
(See PCM CONFIGURATION [MZR-CD 2.2].)


R.H.D. (LF, L8, L5)

am6zzw00004215

1
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
5
Passenger’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Refrigerant pressure switch
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10
Driver’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
PCM
(See PCM REMOVAL/INSTALLATION [L8, LF, L5].)
(See PCM INSPECTION [L8, LF, L5].)
(See PCM CONFIGURATION [L8, LF, L5].)


R.H.D. (MZR-CD (RF Turbo), MZR-CD 2.2)

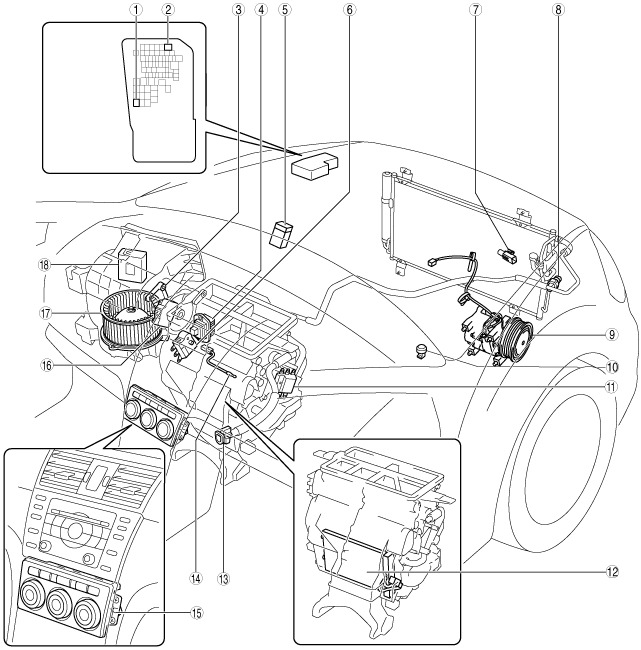

am6zzw00003508

1
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
5
PTC heater relay
6
Passenger’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Refrigerant pressure switch
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
10
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Driver’s side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
PTC heater
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
18
PCM
(See PCM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
(See PCM REMOVAL/INSTALLATION [MZR-CD 2.2].)
(See PCM INSPECTION [MZR-CD (RF Turbo)].)
(See PCM INSPECTION [MZR-CD 2.2].)
(See PCM CONFIGURATION [MZR-CD (RF Turbo)].)
(See PCM CONFIGURATION [MZR-CD 2.2].)
(See PCM REPROGRAMMING [MZR-CD (RF Turbo)].)
