REAR DRAIN HOSE REMOVAL

id091500801500

1.  Disconnect the negative battery cable.

2.  Partially peel back the seaming welt.

3.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof system)

(2)  A‐pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  B‐pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  C‐pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  D-pillar trims (wagon) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Trunk side upper trim (5HB, wagon) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the dimming mirror connector. (vehicles with dimming mirror)

5.  Disconnect the rain sensor connector. (vehicles with rain sensor)

6.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION.)

7.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

8.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

9.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

10.  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

11.  Disconnect the rear drain hose from the sunroof frame.

12.  Remove the rear drain hose from the clips.

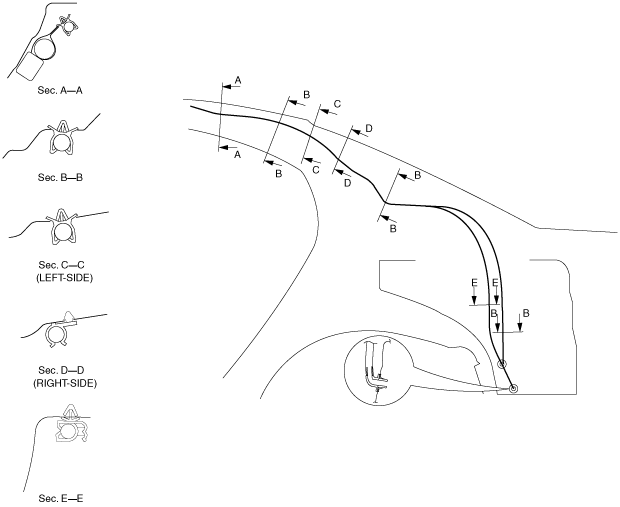

4SD

am6zzw00002647

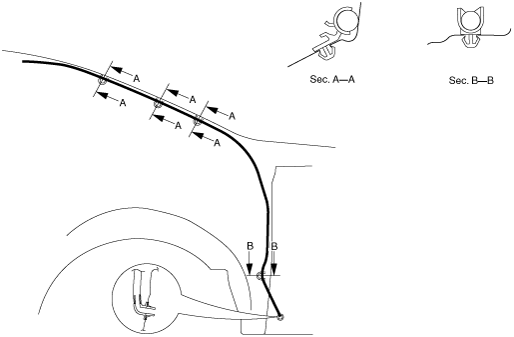

5HB

am6zzw00002648

Wagon

am6zzw00003776

13.  Pull the rear drain hose into the room side.

14.  Remove the rear drain hose.
