ROOF RAIL REMOVAL/INSTALLATION
id091600806200
1. Remove the following parts:
- (1) Sunroof seaming welt (vehicles with sunroof only)
- (2) A‐pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (5) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (7) B‐pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (9) Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (10) Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)
- (11) Lower anchor of the rear seat belt installation bolts (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)
- (12) C‐pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (13) D-pillar trims (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
2. Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror only)
3. Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION)
4. Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION)
5. Remove the assist handles. (See ASSIST HANDLE REMOVAL/INSTALLATION)
6. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION)

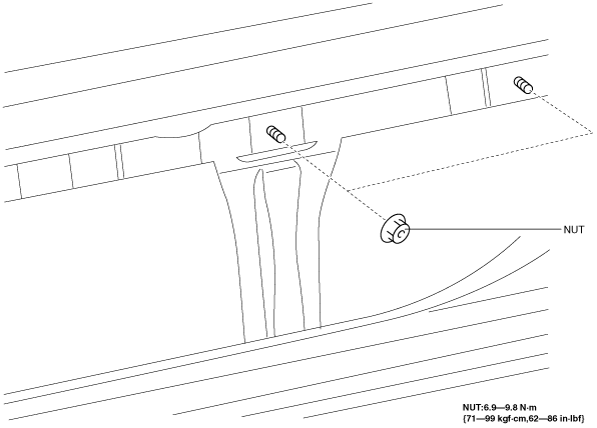

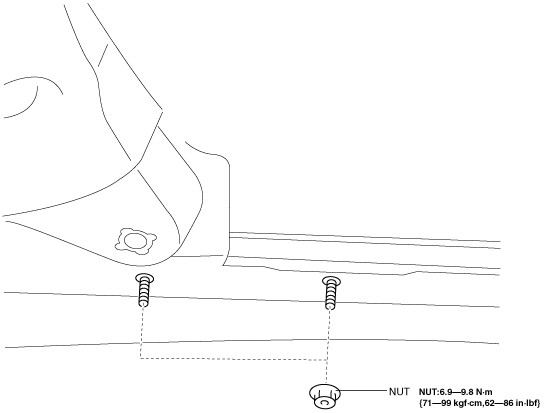

7. Remove the nuts.
8. Pull up the roof rail in the indication of the arrow.
9. Remove the roof rail.
10. Install in the reverse order of removal.
