SHOCK ABSORBING PAD REMOVAL/INSTALLATION

id091700453300

4SD

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Sunroof seaming welt (Vehicles with sunroof only)

(2)  A‐pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  B‐pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

(9)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(10)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(11)  C‐pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming only)

4.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION)

5.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION)

6.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION)

7.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION)

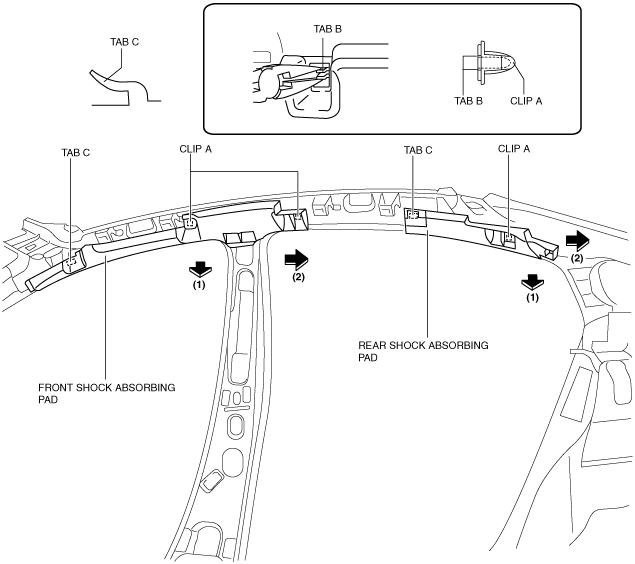

8.  Pinch the tab B using pincers, remove clips A.

am6zzw00003452

9.  Remove the shock-absorbing pad in the direction of the arrow (1) and (2) while remove the tab C.

10.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Sunroof seaming welt (Vehicles with sunroof only)

(2)  A‐pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  B‐pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(10)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

(11)  Lower anchor of the rear seat belt installation bolts (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)

(12)  C‐pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror only)

4.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION)

5.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION)

6.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION)

7.  Disconnect the roof harness connector, remove the clip, and remove the connector.

8.  Disconnect the rear washer hose.

9.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION)

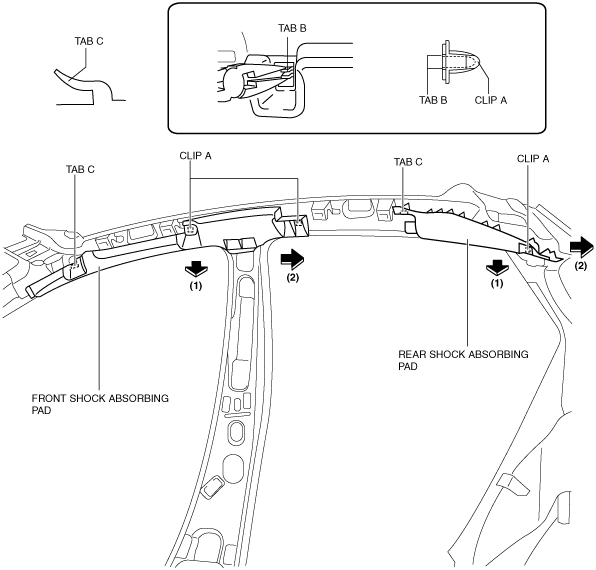

10.  Pinch the tab B using pincers, remove clips A.

am6zzw00003453

11.  Remove the shock-absorbing pad in the direction of the arrow (1) and (2) while remove the tab C.

12.  Install in the reverse order of removal.

Wagon

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Sunroof seaming welt (Vehicles with sunroof only)

(2)  A‐pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  B‐pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(10)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

(11)  Lower anchor of the rear seat belt installation bolts (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)

(12)  C‐pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(13)  D-pillar trims (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror only)

4.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION)

5.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION)

6.  Remove the assist handles. (See ASSIST HANDLE REMOVAL/INSTALLATION)

7.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION)

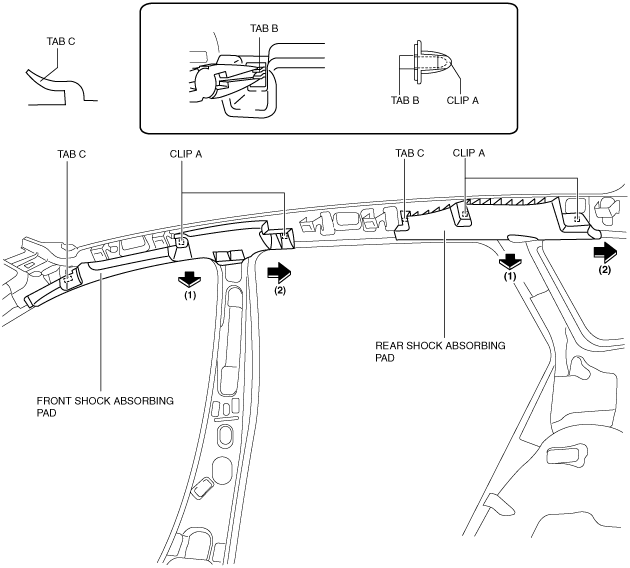

8.  Pinch the tab B using pincers, remove clips A.

am6zzw00003454

9.  Remove the shock-absorbing pad in the direction of the arrow (1) and (2) while remove the tab C.

10.  Install in the reverse order of removal.
