INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200801000

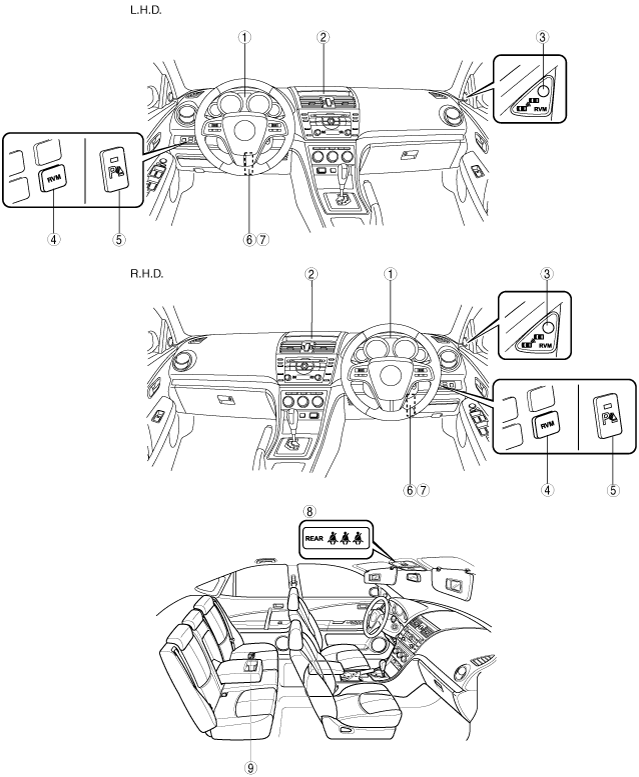

Interior

am6zzw00004246

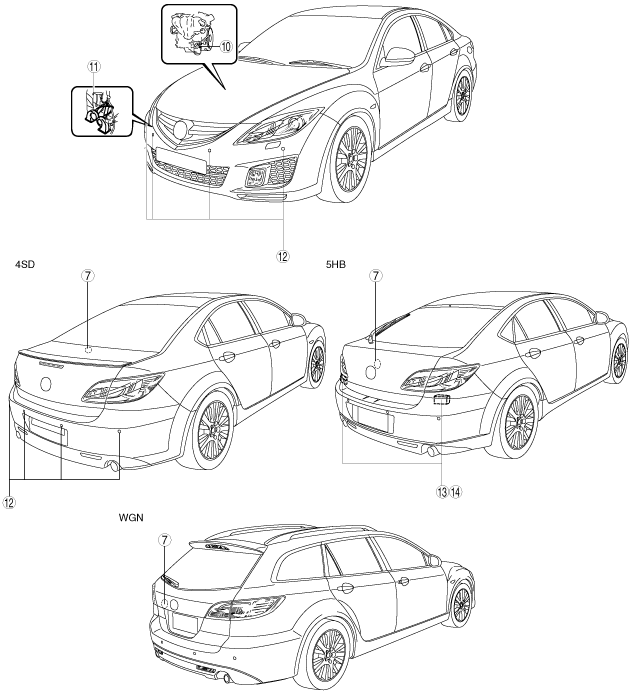

Exterior

am6zzw00004247

1	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY) (See INSTRUMENT CLUSTER INSPECTION) (See INSTRUMENT CLUSTER CONFIGURATION)
2	Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION) (See INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE)
3	RVM warning indicator light (See RVM WARNING INDICATOR LIGHT REMOVAL/INSTALLATION) (See RVM WARNING INDICATOR LIGHT INSPECTION)
4	RVM switch (See RVM SWITCH REMOVAL/INSTALLATION) (See RVM SWITCH INSPECTION)
5	Parking sensor switch (See PARKING SENSOR SWITCH REMOVAL/INSTALLATION) (See PARKING SENSOR SWITCH INSPECTION
6	Parking sensor control module (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION) (See PARKING SENSOR CONTROL MODULE INSPECTION)
7	Parking sensor buzzer (See PARKING SENSOR BUZZER INSPECTION) (See BEEP SOUND ADJUSTMENT)
8	Rear seat belt reminder indicator (See REAR SEAT BELT REMINDER INDICATOR REMOVAL/INSTALLATION)
9	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION) (See FUEL GAUGE SENDER UNIT INSPECTION)
10	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION)
11	Horn (See HORN REMOVAL/INSTALLATION)
12	Ultrasonic sensor (See ULTRASONIC SENSOR REMOVAL/INSTALLATION)
13	Rear vehicle monitoring control module (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION) (See REAR VEHICLE MONITORING CONTROL MODULE INSPECTION) (See REAR VEHICLE MONITORING CONTROL MODULE CONFIGURATION) (See REAR VEHICLE MONITORING RADAR AIMING) (See REAR VEHICLE MONITORING SYSTEM CUSTOMIZED FUNCTION SETTING PROCEDURE)
14	Rear vehicle monitoring bracket (See REAR VEHICLE MONITORING BRACKET REMOVAL/INSTALLATION)
