ANTENNA FEEDER NO.1 INSTALLATION

id092000843500

Caution

•  If the antenna feeder is installed with tension on the cable and wiring harness it could result in loosening of the connection areas and poor contact. When installing and connecting the antenna feeder, always make sure there is slack on the cable and wiring harness.

Note

•  The antenna feeder is integrated with the vehicle wiring harness.

•  When installing a new antenna feeder, secure it to the vehicle wiring harness along the installation route of the old antenna feeder.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Shift lever knob (MT) (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)

(2)  Shift knob (AT) (See SELECTOR LEVER REMOVAL/INSTALLATION.)

(3)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(4)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5)  Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

(8)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(9)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(10)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(11)  Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(12)  Steering shaft installation nuts (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(13)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(14)  TCM (AT) (See TCM REMOVAL/INSTALLATION [SJ6A-EL].)

(15)  A/C amplifier (See A/C AMPLIFIER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See A/C AMPLIFIER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(16)  Auto light/wiper control module (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION.)

(17)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

3.  Align and secure the new antenna feeder No.1 to the vehicle wiring harness.

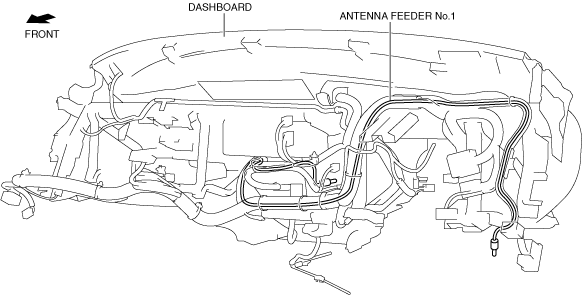

L.H.D.

ar8wzw00000951

R.H.D.

ar8wzw00000896
