FUEL SYSTEM LOCATION INDEX [WLT-1, WLT-2]

id011496800100

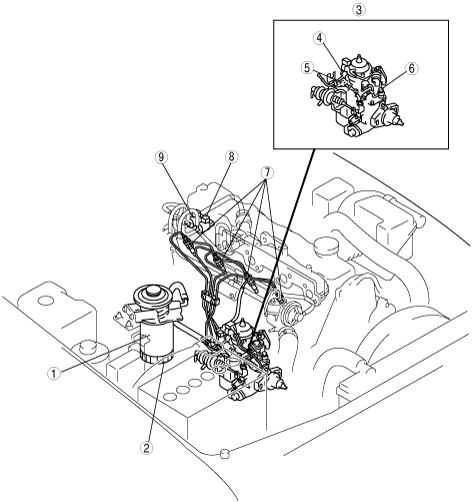

Engine Room Side

absggw00000312

1	Fuel filter (See FUEL FILTER REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See SEDIMENTOR WATER DRAINING [WLT-1, WLT-2].)
2	Sedimentor switch (See SEDIMENTOR SWITCH INSPECTION [WLT-1, WLT-2].)
3	Fuel injection pump (See FUEL INJECTION PUMP REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See FUEL INJECTION PUMP INSPECTION [WLT-1, WLT-2].)
4	FCV (See FUEL CUT SOLENOID VALVE REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See FUEL CUT SOLENOID VALVE INSPECTION [WLT-1, WLT-2].)
5	TCV (WLT-2) (See TIMER CONTROL VALVE (TCV) INSPECTION [WLT-1, WLT-2].)
6	Fuel-inlet filter (See FUEL-INLET FILTER REMOVAL/INSTALLATION [WLT-1, WLT-2].)
7	Injection nozzle (See INJECTION NOZZLE REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See INJECTION NOZZLE DISASSEMBLY/ASSEMBLY [WLT-1, WLT-2].) (See INJECTION NOZZLE INSPECTION [WLT-1, WLT-2].)
8	FICD solenoid valve No.1 (See FICD SOLENOID VALVE INSPECTION [WLT-1, WLT-2].)
9	FICD solenoid valve No.2 (See FICD SOLENOID VALVE INSPECTION [WLT-1, WLT-2].)

Fuel Tank Side

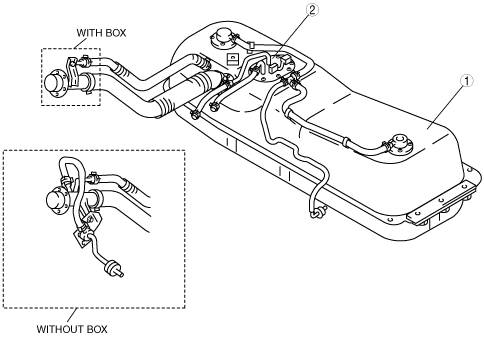

Double cab 4x2, Freestyle cab 4x2

absggw00000295

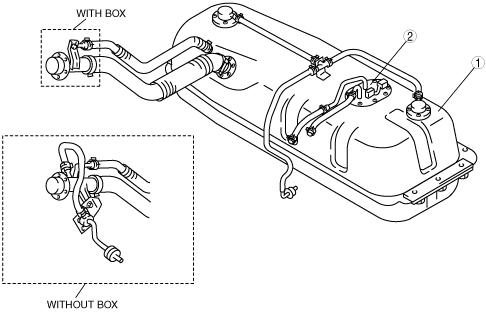

Regular cab, Double cab 4x4, Freestyle cab 4x4

absggw00000296

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See FUEL TANK INSPECTION [WLT-1, WLT-2].)
2	Fuel gauge sender unit
