CENTER LOWER PANEL REMOVAL/INSTALLATION
id091700606400
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (2) Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)
-
- (3) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
-
- (4) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
-
- (5) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (6) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (7) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (12) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (13) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (14) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (15) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-

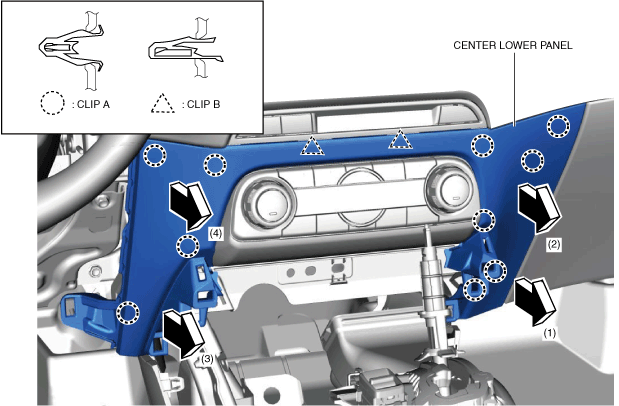

3. Move the center lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and remove it while detaching clips A and B from the dashboard.
4. Install in the reverse order of removal.
