INDICATOR UNIT REMOVAL/INSTALLATION
id092200037500
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (2) Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)
-
- (3) Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)
-
- (4) Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].)
-
- (5) Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (6) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (7) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (9) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (10) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (11) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (12) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (13) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (14) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (15) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (16) Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)
-
3. Remove the wiring harness clip.

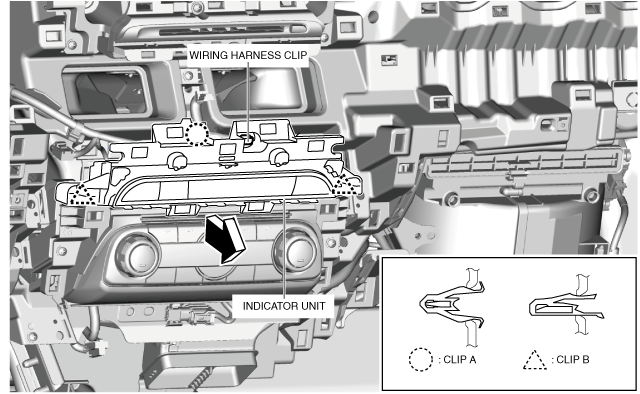

4. Pull the indicator unit in the direction of the arrow shown in the figure and detach the clip A and B.
5. Disconnect the connector.
6. Install in the reverse order of removal.
