CENTER LOWER PANEL REMOVAL/INSTALLATION

id091700606400

Driver-side Center Lower Panel

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2) Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6) Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(7) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(8) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(12) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(13) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3. Move the driver-side center lower panel in the order of arrows (1), (2), and (3) shown in the figure, and remove it while detaching the clips from the dashboard.

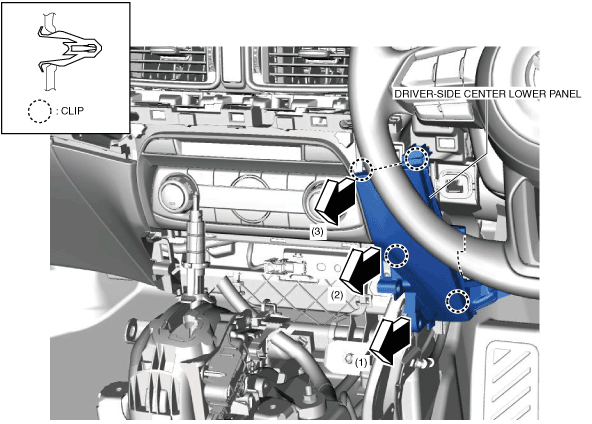

ac8wzw00001595

4. Install in the reverse order of removal.

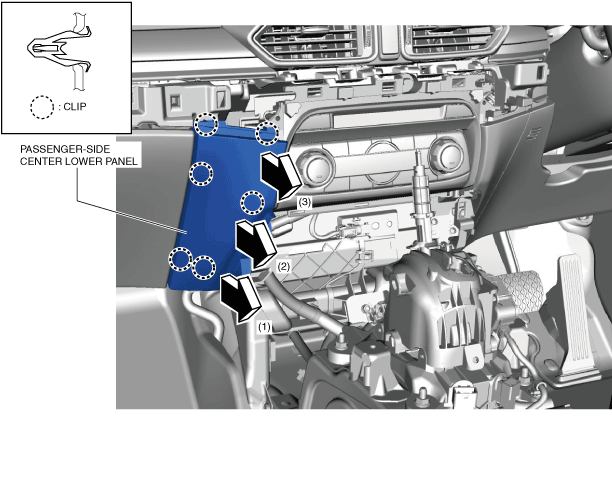

Passenger-side Center Lower Panel
