REAR COMBINATION LIGHT SHORT-CORD INSPECTION
id091800025200
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts.
- (1) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (2) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (3) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (4) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (5) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (6) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (7) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (8) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (9) Rear combination light short-cord (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION.)
-

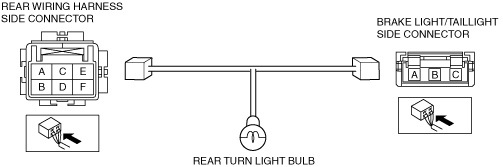

3. Verify that the continuity between the rear combination light short-cord terminals is as indicated in the table.
-
