CONDENSER REMOVAL/INSTALLATION

id092000803000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(7)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(8)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(9)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(10)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and then detach the clips.

ac8wzw00001854

4.  Partially peel back the headliner.

5.  Disconnect the connector.

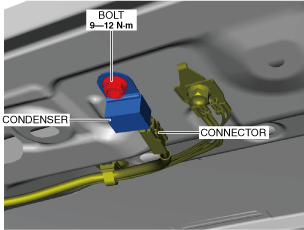

ac8wzw00002266

6.  Remove the bolts.

7.  Remove the condenser.

8.  Install in the reverse order of removal.
