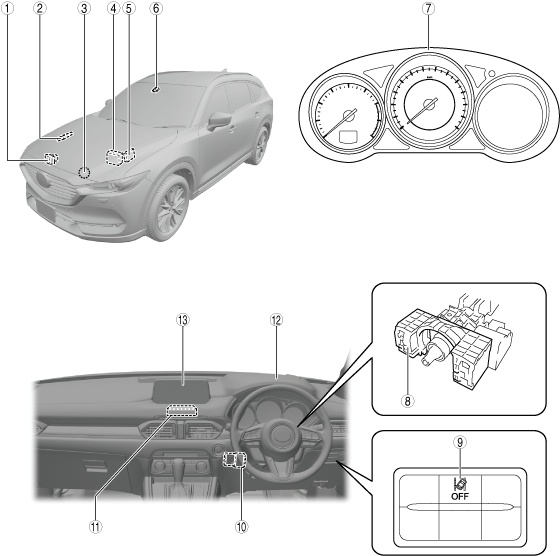

LANE-KEEP ASSIST SYSTEM LOCATION INDEX

id152000005400

ac8jjw00001374

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See DSC HU/CM INSPECTION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
2	PCM (SKYACTIV-D 2.2) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See PCM INSPECTION [SKYACTIV-D 2.2].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 2.2].)
3	TCM (See CONTROL VALVE BODY REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL].) (See TCM CONFIGURATION [GW6A-EL, GW6AX-EL].)
4	PCM (SKYACTIV-G 2.5) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See PCM INSPECTION [SKYACTIV-G 2.5].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.5].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.5].)
5	Front body control module (FBCM) (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.) (See FRONT BODY CONTROL MODULE (FBCM) INSPECTION.) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA).)
6	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (SeeFORWARD SENSING CAMERA (FSC) INSPECTION .) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA).) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD.)
7	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER OPERATION RECORD.) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
8	Start stop unit (See START STOP UNIT REMOVAL/INSTALLATION.) (See START STOP UNIT INSPECTION.) (See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).) (See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).) (See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
9	Lane-keep assist system OFF switch (See LANE-KEEP ASSIST SYSTEM OFF SWITCH REMOVAL/INSTALLATION.) (See LANE-KEEP ASSIST SYSTEM OFF SWITCH INSPECTION.)
10	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.) (See EPS CONTROL MODULE INSPECTION.)
11	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See Bluetooth® PAIRING PROCEDURE.)) (See MAINTENANCE MONITOR OPERATION PROCEDURE.)
12	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
13	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
