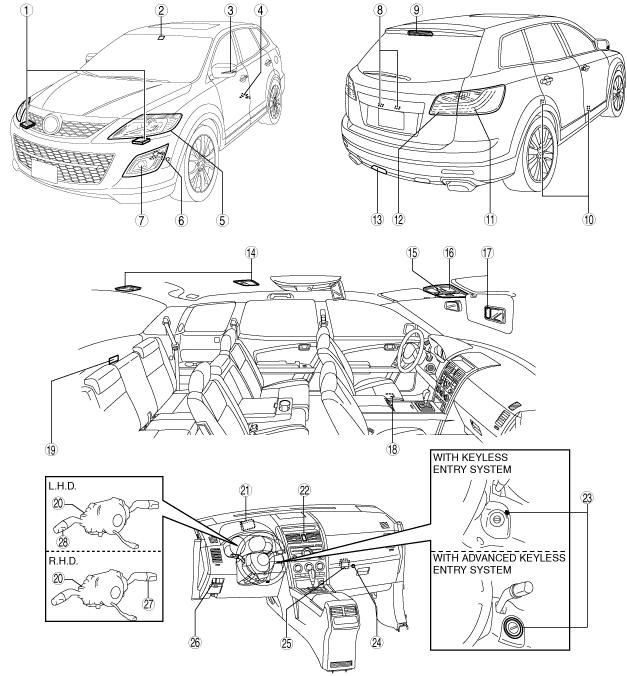

LIGHTING SYSTEMS LOCATION INDEX

id091800800100

ac9wzw00001224

1	Discharge headlight control module (See DISCHARGE HEADLIGHT SERVICE WARNINGS.) (See DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION.) (See DISCHARGE HEADLIGHT SYSTEM INSPECTION.)
2	Auto light sensor (with auto light system) (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR REINITIALIZATION SETTING.)
3	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.)
4	Rear auto leveling sensor (Vehicles with auto leveling system) (See REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION.) (See REAR AUTO LEVELING SENSOR INSPECTION.)
5	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.)
6	Front auto leveling sensor (Vehicles with auto leveling system) (See FRONT AUTO LEVELING SENSOR REMOVAL/INSTALLATION.) (See FRONT AUTO LEVELING SENSOR INSPECTION.)
7	Front fog light (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
9	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
10	Door switch (See DOOR SWITCH REMOVAL/INSTALLATION) (See DOOR SWITCH INSPECTION)
11	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
12	Inboard light (See INBOARD LIGHT REMOVAL/INSTALLATION.) (See INBOARD LIGHT BULB REMOVAL/INSTALLATION.)
13	Rear fog light (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
14	Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.) (See INTERIOR LIGHT BULB REMOVAL/INSTALLATION.)
15	Console indirect illumination (See INDIRECT ILLUMINATION REMOVAL/INSTALLATION.)
16	Map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT INSPECTION.)
17	Vanity mirror illumination (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
18	Courtesy light (See COURTESY LIGHT BULB REMOVAL/INSTALLATION.)
19	Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION) (See CARGO COMPARTMENT LIGHT INSPECTION) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
20	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.) (See COMBINATION SWITCH DISASSEMBLY/ASSEMBLY.) (See STEERING ANGLE SENSOR INSPECTION.)
21	Auto light/wiper control module (Vehicles with auto light/wiper system) (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION.) (See AUTO LIGHT/WIPER CONTROL MODULE INSPECTION.) (See AUTO LIGHT/WIPER CONTROL MODULE CONFIGURATION.) (See AUTO LIGHT ILLUMINATION LEVEL SETTING.)
22	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
23	Ignition key illumination (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)
24	Glove compartment light (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
25	Auto leveling control module (Vehicles with auto leveling system) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.) (See AUTO LEVELING SYSTEM INITIALIZATION.)
26	Headlight leveling switch (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
27	Light switch (R.H.D.) (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FOG LIGHT SWITCH INSPECTION.)
28	Light switch (L.H.D.) (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FOG LIGHT SWITCH INSPECTION.)
