VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION

id091800703500

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Front map light(See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(2)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(8)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(9)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am6xuw00011378

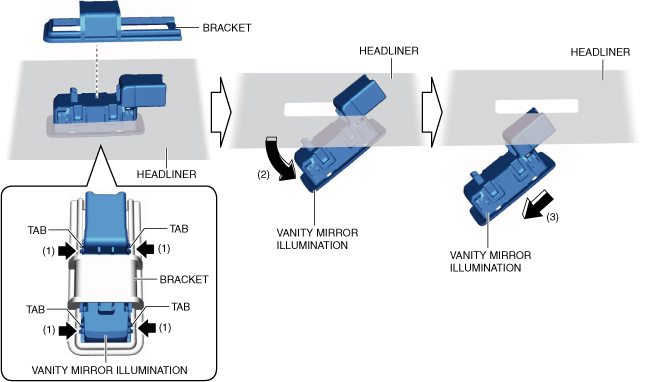

4.  Remove the bracket while pressing the tab of the vanity mirror illumination in the direction of arrow (1) shown in the figure.

Caution

•  When removing the vanity mirror illumination from the bracket, it may fall off and be damaged. When removing the vanity mirror illumination from the bracket, hold the lens side of the vanity mirror illumination by hand as you work.

am6xuw00011379

5.  Move the vanity mirror illumination in the direction of arrow (2) shown in the figure.

6.  Move the vanity mirror illumination in the direction of arrow (3) as shown in the figure and remove it from the headliner.

7.  Install in the reverse order of removal.
