HEADLINER REMOVAL/INSTALLATION

id091700052000

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front map light(See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(2)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(8)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(9)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Remove the bolts.

a30zzw00000157

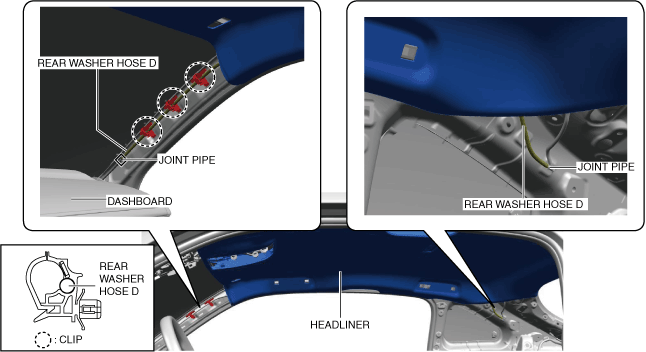

4.  Remove rear washer hose D from the clips.

a30zzw00000158

5.  Disconnect rear washer hose D from the joint pipe.

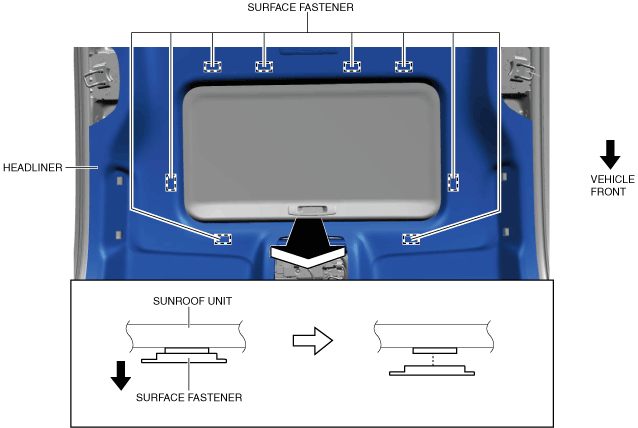

6.  Move the headliner in the direction of the arrow shown to remove the surface fasteners from the sunroof unit. (With sunroof system)

a30zzw00000394

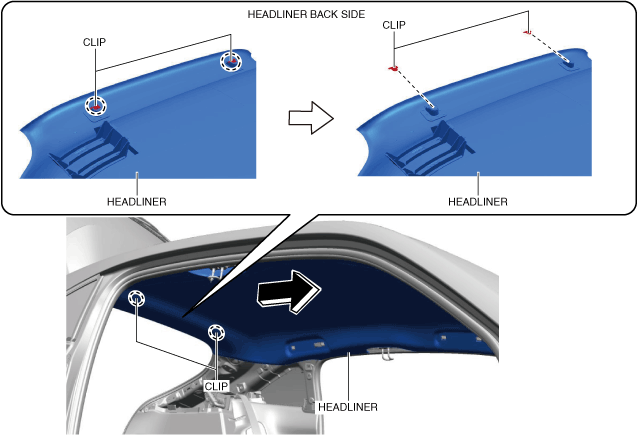

7.  Slide the headliner in the direction of the arrow shown in the figure and remove the clips from the headliner.

a30zzw00000160

8.  Pull the headliner out of the vehicle through the passenger-side door opening.

9.  Remove the clips from the roof panel.

a30zzw00000162

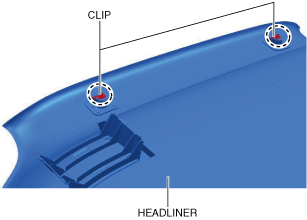

10.  Attach the clips removed in Step 9 to the headliner.

a30zzw00000163

11.  Install in the reverse order of removal. (See Headliner Installation Note.)

Note

•  When replacing the headliner, remove the following parts:

•  Rear washer hose D (See REAR WASHER HOSE REMOVAL/INSTALLATION.)

•  Vanity mirror illumination (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.)

Headliner Installation Note

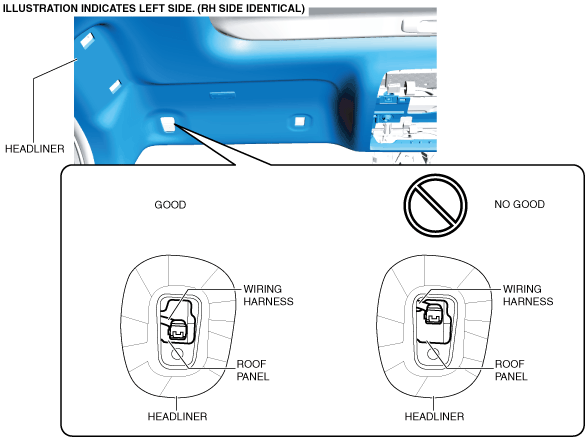

1.  Set the wiring harness to the position shown in the figure so that it does not get caught between the roof panel and the headliner.

a30zzw00001968
