INSTRUMENT CLUSTER

id092200702900


Outline

•  The instrument cluster centrally controls the following:
―  Speedometer
―  Tachometer
―  Fuel gauge
―  Engine coolant temperature gauge
―  Odometer/tripmeter
―  Panel light
―  Remaining distance-to-empty display
―  Average fuel economy display
―  Instantaneous fuel economy display
―  Ambient temperature display
―  Warning light/Indicator light
―  Multi-information display

Functions

•  The instrument cluster displays the following information to notify the driver of the vehicle conditions.
―  Vehicle speed (speedometer display function)
―  Engine speed (tachometer display function)
―  Remaining fuel quantity (fuel gauge display function)
―  Engine coolant temperature (engine coolant temperature gauge display function)
―  Traveled distance (odometer/tripmeter display function)
―  Remaining distance-to-empty (remaining distance-to-empty display function)
―  Average fuel economy (average fuel economy display function)
―  Instantaneous fuel economy (instantaneous fuel economy display function)
―  Ambient temperature (ambient temperature display function)
―  Warning/indicator light (warning/indicator light turn on/flash function)
―  Warning/indicator message (multi-information display)

Speedometer display function

•  The instrument cluster controls the speedometer based on the vehicle speed signal sent via CAN communication from the PCM, and displays the current vehicle speed. For details on the speedometer, refer to [SPEEDOMETER]. (See SPEEDOMETER .)


Tachometer display function

•  The instrument cluster controls the speedometer based on the vehicle speed signal sent via CAN communication from the PCM, and displays the current vehicle speed. For details on the speedometer, refer to [SPEEDOMETER]. (See TACHOMETER .)


Fuel gauge display function

•  The instrument cluster displays the remaining fuel quantity based on the fuel gauge sender unit voltage signal sent via CAN communication from the ESU, and the vehicle speed and fuel injection amount signals sent via CAN communication from the PCM. For details on the remaining fuel quantity, refer to [FUEL GAUGE]. (See FUEL GAUGE .)


Engine coolant temperature gauge display function

•  The instrument cluster displays the engine coolant temperature based on the engine coolant temperature signal sent from the PCM via CAN communication. For details on the engine coolant temperature gauge, refer to [ENGINE COOLANT TEMPERATURE GAUGE]. (See ENGINE COOLANT TEMPERATURE GAUGE.)


Odometer/tripmeter display function

•  The instrument cluster displays the total traveled distance/traveled distance over a specific interval based on the travel distance signal sent via CAN communication from the PCM on the multi-information display in the instrument cluster. For details on the odometer/tripmeter, refer to [ODOMETER/TRIPMETER]. (See ODOMETER/TRIPMETER .)


Panel light control function

•  The instrument cluster changes the brightness of the panel light based on the panel light control switch signal and TNS (parking lights) signal sent via CAN communication from the body control module (BCM). For details on the panel light, refer to [PANEL LIGHT]. (See PANEL LIGHT .)


Distance to full discharge display function

•  The instrument cluster displays the remaining distance-to-empty based on the remaining distance-to-empty signal sent from the body control module (BCM) via CAN communication. For details on the remaining distance-to-empty display, refer to [DISTANCE TO FULL DISCHARGE DISPLAY]. (See DISTANCE TO FULL DISCHARGE DISPLAY.)


Average fuel economy display function

•  The instrument cluster displays the average fuel economy based on the average fuel economy signal sent from the body control module (BCM) via CAN communication. For details on the average fuel economy display, refer to [AVERAGE FUEL ECONOMY]. (See AVERAGE FUEL ECONOMY DISPLAY.)


Instantaneous fuel economy display function

•  The instrument cluster displays the instantaneous fuel economy based on the instantaneous fuel economy signal sent from the body control module (BCM) via CAN communication. For details on the instantaneous fuel economy display, refer to [INSTANTANEOUS FUEL ECONOMY DISPLAY]. (See INSTANTANEOUS FUEL ECONOMY DISPLAY.)


Ambient temperature display function

•  The instrument cluster displays the ambient temperature based on the ambient temperature signal sent from the PCM via CAN communication. For details on the ambient temperature display, refer to [AMBIENT TEMPERATURE DISPLAY]. (See AMBIENT TEMPERATURE DISPLAY.)[


Warning/indicator light turn on/flash function, message/system operation status display function

•  The instrument cluster turns on or flashes the warning indicator lights to notify the driver of the vehicle system status.
•  The types of warning/indicator lights are as follows: For details on each warning/indicator light, refer to each reference.
•  A warning message in the center display/multi-information display is displayed when the warning/indicator light is turned on or flashed. For the display content, refer to the [MULTI-INFORMATION DISPLAY] or [CENTER DISPLAY] in the workshop manual. (See MULTI-INFORMATION DISPLAY .)

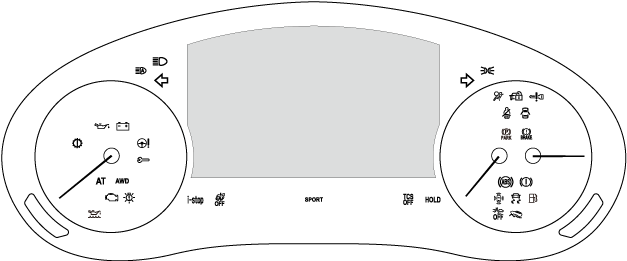

a30zzn00001737

×: Applicable
—: Not applicable

Warning light/Indicator light

Name

Message is displayed in multi-information display when warning/indicator light turns on/flashes

Comment

Warning/indicator light turned on when ignition is switched ON (engine off or on)

Reference
Brake system warning light
×
—
×
(See WARNING/INDICATION/ALARM.)
ABS warning light
×
—
×
(See WARNING/INDICATION/ALARM.)
Charging system warning light
×
—
×
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Power steering malfunction indicator light
×
—
×
(See WARNING/INDICATION/ALARM.)
Brake control system warning light
×
—
×
(See WARNING/INDICATION/ALARM.)
Air bag/seat belt pre-tensioner system warning light
×
—
×
(See WARNING/INDICATION/ALARM [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
Tire pressure monitoring system (TPMS) warning light
×
—
×
(See WARNING/INDICATION/ALARM.)
KEY warning light (red)/KEY indicator light (green)
×
—
×
(See WARNING/INDICATION/ALARM.)
High beam control (HBC) indicator light (green)/High beam control (HBC) warning light (amber)/Adaptive LED headlights (ALH) indicator light (green)/adaptive LED headlights (ALH) warning light (amber)
×
With high beam control (HBC) system or adaptive LED headlights
×
(See WARNING/INDICATION/ALARM.)
i-ACTIVSENSE warning light
×
—
×
(See WARNING/INDICATION/ALARM.)
Exterior light warning light
×
—
×
(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
Seat belt warning light
×
—
—
(See WARNING/INDICATION/ALARM.)
Door-ajar warning light
—
—
—
(See WARNING/INDICATION/ALARM.)
Security indicator light
—
—
—
(See WARNING/INDICATION/ALARM.)
Wrench indicator light
×
—
×
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Lights-on indicator light
×
—
—
(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
Headlight high-beam indicator light
—
—
—
(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
Turn signal/hazard warning indicator lights
—
—
—
(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
Electric parking brake (EPB) indicator light
×
—
×
(See WARNING/INDICATION/ALARM.)
AUTOHOLD active indicator light/Mazda radar cruise control with stop & go function (MRCC with stop & go function) indicator light/Cruising & traffic support (CTS) indicator light
—
—
×
(See WARNING/INDICATION/ALARM.)
(See WARNING/INDICATION/ALARM.)
TCS/DSC indicator light
×
—
×
(See WARNING/INDICATION/ALARM.)
TCS OFF indicator light
—
—
×
(See WARNING/INDICATION/ALARM.)
Smart brake support (SBS) OFF indicator light
—
—
—
(See WARNING/INDICATION/ALARM.)
Shift control system warning light
×
—
×
(See WARNING/INDICATION/ALARM.)
Emergency lane keeping (ELK) OFF indicator light
—
With emergency lane keeping
—
(See WARNING/INDICATION/ALARM.)
i-stop warning light (amber)/i-stop indicator light (green)
×
With i-stop system
×
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Select mode indicator light
—
Select mode indicator light
—
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Engine oil level warning light
×
—
×
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Automatic transaxle warning light
×
—
×
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
AWD warning light
×
AWD
×
(See AWD WARNING LIGHT.)
Check engine light
×
—
×
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Engine oil level warning light
×
—
×
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Low fuel warning light
×
—
—
(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
Off-road traction assist indicator light
—
AWD
×
(See AWD WARNING LIGHT.)


Structure/Construction

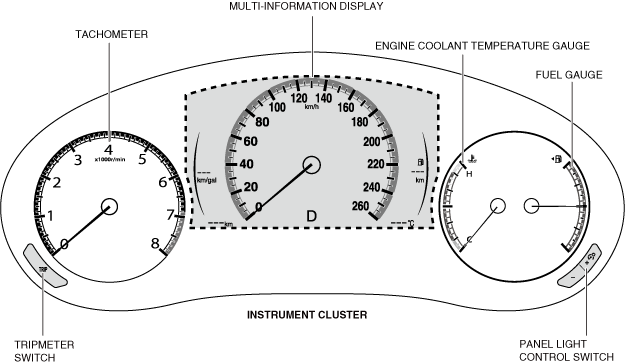

Structural view

a30zzn00001740

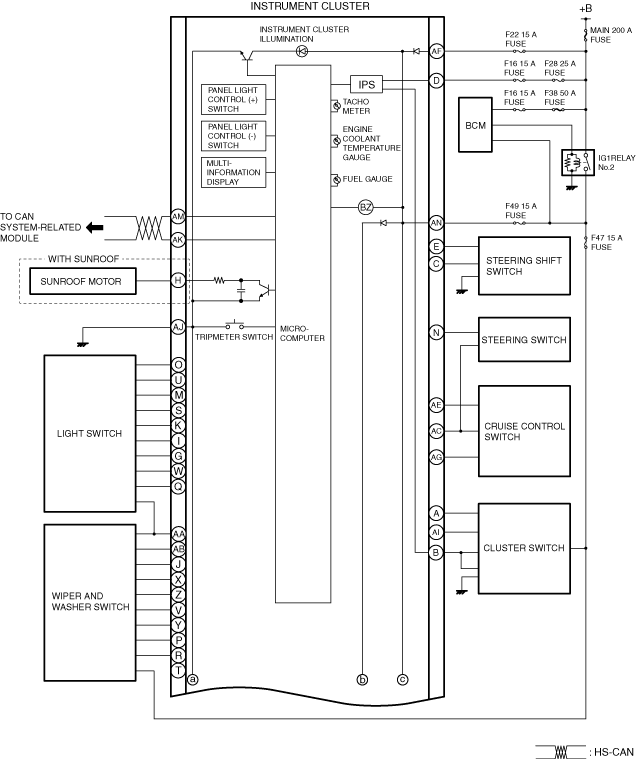

System wiring diagram

a30zzn00001741

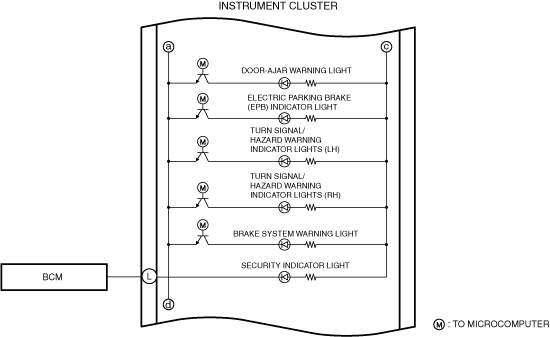

a30zzn00001742

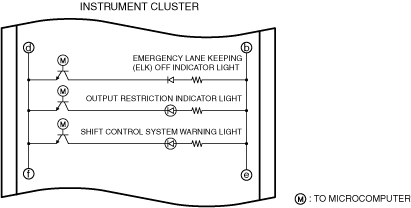

a30zzn00001743

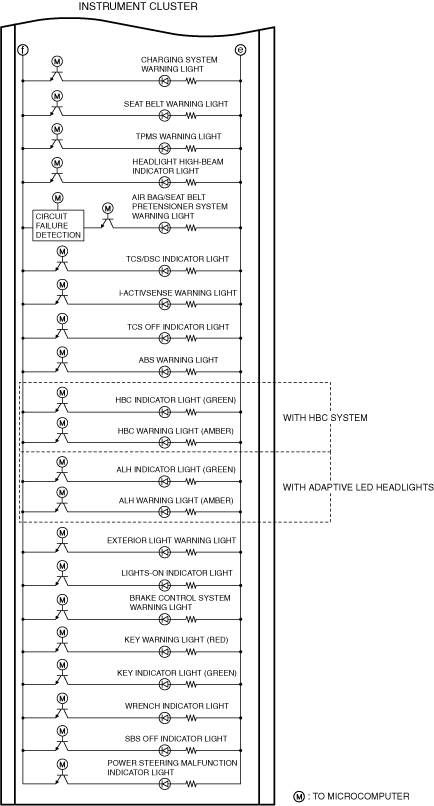

a30zzn00001744
