MULTI-INFORMATION DISPLAY

id092200703800

Outline

• The multi-information display displays vehicle information in the instrument cluster.

Function/Construction

• The instrument cluster configures the indication of the multi-information display based on the CAN signals sent from the related modules and displays it.

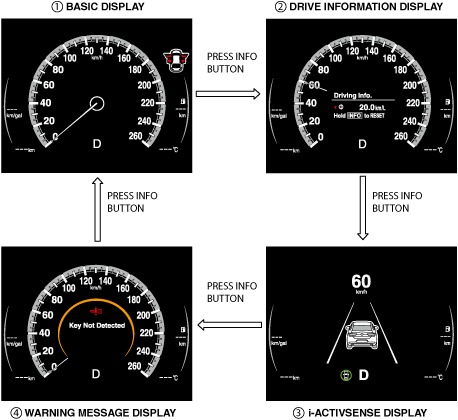

Information displayed in multi-information display

• The information displayed by the multi-information display is as follows: Refer to the referenced section for details of the displayed information.

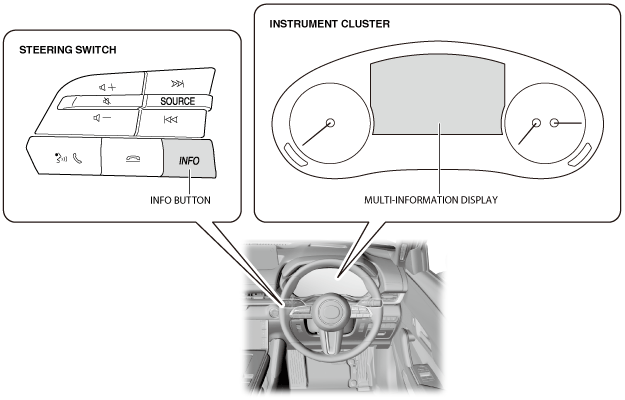

a30zzn00001769

Display information

Reference

Speedometer

(See SPEEDOMETER.)

Odometer/tripmeter

(See ODOMETER/TRIPMETER.)

Ambient temperature display

(See AMBIENT TEMPERATURE DISPLAY.)

Distance to full discharge display

(See DISTANCE TO FULL DISCHARGE DISPLAY.)

Average fuel economy

(See AVERAGE FUEL ECONOMY DISPLAY.)

Instantaneous fuel economy

(See INSTANTANEOUS FUEL ECONOMY DISPLAY.)

i-ACTIVSENSE display

Mazda radar cruise control (MRCC) system display

(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)

Cruising & traffic support (CTS) display/Traffic jam assist (TJA) display

(See CRUISING & TRAFFIC SUPPORT (CTS).)

Distance & speed alert (DSA) display

(See DISTANCE & SPEED ALERT (DSA).)

Lane-keep assist system (LAS) display

(See LANE-KEEP ASSIST SYSTEM.)

Lane departure warning system (LDWS) display

(See LANE DEPARTURE WARNING SYSTEM (LDWS).)

Blind spot monitoring (BSM) system display

(See BLIND SPOT MONITORING (BSM) SYSTEM.)

Traffic sign recognition system (TSR) display

(See TRAFFIC SIGN RECOGNITION SYSTEM (TSR).)

Emergency lane keeping

(See EMERGENCY LANE KEEPING [ROAD KEEP ASSIST].)

(See EMERGENCY LANE KEEPING [BLIND SPOT ASSIST].)

Door-ajar warning indication/Liftgate-ajar warning indication

(See WARNING/INDICATION/ALARM.)

Message screen, warning screen, and system operation screen

(See Message screen, warning screen, and system operation screen.)

Shift position indicator light

(See INDICATOR.)

Maintenance monitor

Refer to the [MAINTENANCE MONITOR] in the workshop manual.

Display information	Reference
Speedometer	(See SPEEDOMETER.)
Odometer/tripmeter	(See ODOMETER/TRIPMETER.)
Ambient temperature display	(See AMBIENT TEMPERATURE DISPLAY.)
Distance to full discharge display	(See DISTANCE TO FULL DISCHARGE DISPLAY.)
Average fuel economy	(See AVERAGE FUEL ECONOMY DISPLAY.)
Instantaneous fuel economy	(See INSTANTANEOUS FUEL ECONOMY DISPLAY.)
i-ACTIVSENSE display	Mazda radar cruise control (MRCC) system display	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
Cruising & traffic support (CTS) display/Traffic jam assist (TJA) display	(See CRUISING & TRAFFIC SUPPORT (CTS).)
Distance & speed alert (DSA) display	(See DISTANCE & SPEED ALERT (DSA).)
Lane-keep assist system (LAS) display	(See LANE-KEEP ASSIST SYSTEM.)
Lane departure warning system (LDWS) display	(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
Blind spot monitoring (BSM) system display	(See BLIND SPOT MONITORING (BSM) SYSTEM.)
Traffic sign recognition system (TSR) display	(See TRAFFIC SIGN RECOGNITION SYSTEM (TSR).)
Emergency lane keeping	(See EMERGENCY LANE KEEPING [ROAD KEEP ASSIST].) (See EMERGENCY LANE KEEPING [BLIND SPOT ASSIST].)
Door-ajar warning indication/Liftgate-ajar warning indication	(See WARNING/INDICATION/ALARM.)
Message screen, warning screen, and system operation screen	(See Message screen, warning screen, and system operation screen.)
Shift position indicator light	(See INDICATOR.)
Maintenance monitor	Refer to the [MAINTENANCE MONITOR] in the workshop manual.

Message screen, warning screen, and system operation screen

• The instrument cluster displays the following screens in the multi-information display.

• If the instrument cluster receives message display requests from multiple units, the screens are switched at certain intervals.

—: Not applicable

Screen display		Related module	Reference/function
		PCM	(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		TCM	(See WARNING/INDICATION/ALARM.)
		TCM	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.) (See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/LF control unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/LF control unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		Electric Power Steering (EPS) control module	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		SAS control module	(See WARNING/INDICATION/ALARM [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Auto leveling control module/Adaptive LED headlights control module	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM.)
		PCM/Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		PCM/Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM.)
		Forward sensing camera (FSC)/Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Forward sensing camera (FSC)/Body control module (BCM)/Adaptive LED headlights control module	(See WARNING/INDICATION/ALARM.)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM.)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM.)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM.)
		Front radar sensor	(See WARNING/INDICATION/ALARM.)
		Front radar sensor/Front side radar sensor/Rear side radar sensor	(See WARNING/INDICATION/ALARM.)
		Front radar sensor/Front side radar sensor/Rear side radar sensor	(See WARNING/INDICATION/ALARM.)
		Front radar sensor	(See WARNING/INDICATION/ALARM.)
		Front radar sensor	(See WARNING/INDICATION/ALARM.)
		Front side radar sensor	(See WARNING/INDICATION/ALARM.)
		Front side radar sensor	(See WARNING/INDICATION/ALARM.)
		Front side radar sensor	(See WARNING/INDICATION/ALARM.)
		Rear side radar sensor	(See WARNING/INDICATION/ALARM.)
		Rear side radar sensor	(See WARNING/INDICATION/ALARM.)
		Rear side radar sensor	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM.)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM.)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See AUTOHOLD.)
		Electronically controlled brake unit	(See AUTOHOLD.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit	(See ELECTRIC PARKING BRAKE.)
		Electronically controlled brake unit	(See AUTOHOLD.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
		Body control module (BCM)/Electronically controlled brake unit/Parking assist unit (optical)/360°view monitor control module/Parking assist unit (ultrasonic)	(See SMART BRAKE SUPPORT (SBS) [FORWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [TURN-ACROSS TRAFFIC].) (See SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [REAR CROSSING].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Connectivity master unit	(See DRIVER ATTENTION ALERT SYSTEM.) (See DRIVER MONITORING (DM).)
		Body control module (BCM)/LF control unit	(See IMMOBILIZER SYSTEM.)
		Body control module (BCM)/LF control unit	(See IMMOBILIZER SYSTEM.)
		Body control module (BCM)/LF control unit/Steering lock unit	(See STEERING LOCK UNIT.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See CRUISING & TRAFFIC SUPPORT (CTS).)
		PCM	—
		Connectivity master unit	(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
		Connectivity master unit	(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
		Connectivity master unit	(See WARNING/INDICATION/ALARM [SKYACTIV-G 2.0].)
		PCM	—
		PCM	—
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Electronically controlled brake unit/Parking assist unit (optical)/360°view monitor control module/Parking assist unit (ultrasonic)	(See SMART BRAKE SUPPORT (SBS) [FORWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [TURN-ACROSS TRAFFIC].) (See SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [REAR CROSSING].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Electronically controlled brake unit/SAS control module	(See AUTOHOLD.)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)/Door-electrical supply unit	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WINDSHIELD WIPER/WASHER SYSTEM.)
		Body control module (BCM)	(See WINDSHIELD WIPER/WASHER SYSTEM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)	(See BODY CONTROL MODULE (BCM).)
		Body control module (BCM)	(See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)
		Body control module (BCM)/Selector lever	(See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)
		TCM	—
		TCM	—
		Body control module (BCM)/LF control unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Electronically controlled brake unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See DISTANCE & SPEED ALERT (DSA).) (See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See DISTANCE & SPEED ALERT (DSA).) (See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
		Forward sensing camera (FSC)/Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM.)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM.)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See CRUISING & TRAFFIC SUPPORT (CTS).)
		SAS control module	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See DISTANCE & SPEED ALERT (DSA).)
		SAS control module	(See SEAT BELT.)
		SAS control module	(See SEAT BELT.)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		PCM	(See WARNING/INDICATION/ALARM.)
		Emergency call unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See DISTANCE & SPEED ALERT (DSA).)
		Selector lever	(See WARNING/INDICATION/ALARM.)
		Selector lever	(See WARNING/INDICATION/ALARM.)
		Parking lock actuator	(See WARNING/INDICATION/ALARM.)
