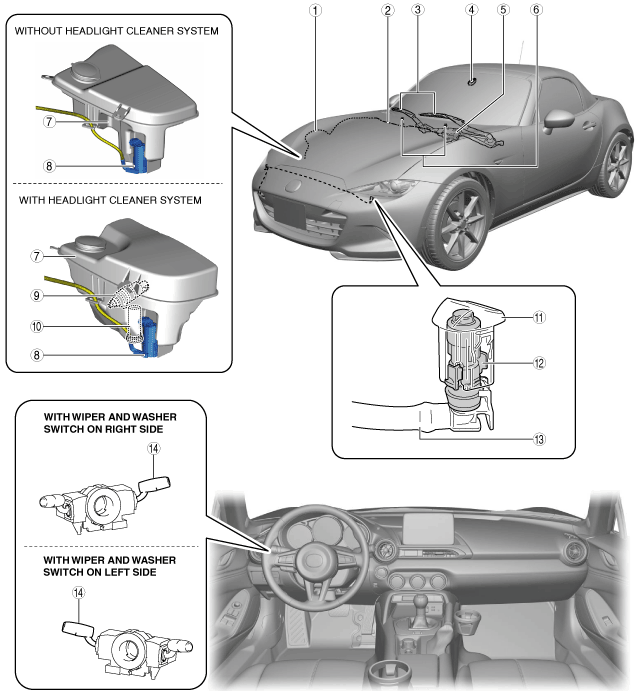

WIPER/WASHER SYSTEM LOCATION INDEX

id091900903000

amxzzw00003268

1	Washer hose A (See WASHER HOSE REMOVAL/INSTALLATION.)
2	Washer hose B (See WASHER HOSE REMOVAL/INSTALLATION.)
3	Wiper arm and blade (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See WIPER ARM AND BLADE ADJUSTMENT.)
4	Rain sensor (with auto wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIALIZATION SETTING.) (See WIPER/WASHER PERSONALIZATION FEATURES SETTING PROCEDURE.)
5	Wiper motor and link (See WIPER MOTOR AND LINK REMOVAL/INSTALLATION.) (See WIPER MOTOR INSPECTION.)
6	Washer nozzle (See WASHER NOZZLE REMOVAL/INSTALLATION.) (See WASHER NOZZLE ADJUSTMENT.)
7	Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)
8	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION.) (See WASHER MOTOR INSPECTION.)
9	Headlight cleaner motor (with headlight cleaner system) (See HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION.) (See HEADLIGHT CLEANER MOTOR INSPECTION.)
10	Washer fluid-level sensor (with headlight cleaner system) (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION.) (See WASHER FLUID-LEVEL SENSOR INSPECTION.)
11	Headlight cleaner cover (with headlight cleaner system) (See HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION.)
12	Headlight cleaner nozzle (with headlight cleaner system) (See HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION.)
13	Headlight cleaner hose (with headlight cleaner system) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)
14	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.) (See WIPER AND WASHER SWITCH INSPECTION.)
